SharePoint Scanner

Introduction

The SharePoint Scanner allows extracting documents, list items, folders, list/libraries and their related information from Microsoft SharePoint sites.

• Supports Microsoft SharePoint 2007/2010/2013/2016 documents, list items, folders, list/libraries

• Extract content(document), metadata

• Extract versions

• Exclude specified content types

• Exclude specified file types

• Exclude specified columns (attributes)

• Calculate checksum during scan to be used later for validating the imported content (in combination with importers supporting this feature)

The SharePoint Scanner is implemented mainly as SharePoint Solution running on the SharePoint Server, with the Job Server part managing communication between migration-center and the SharePoint component.

Known Issues

The SharePoint Scanner might receive timeout error from SharePoint when scanning libraries with more than 5000 documents (#52865)

Currently a workaround can be used if the timeout errors are encountered by running the scanner with the following CAML query:

 <Where>
      <And>
         <Geq>
            <FieldRef Name='ID' />
            <Value Type='Counter'>1</Value>
         </Geq>
         <Lt>
            <FieldRef Name='ID' />
            <Value Type='Counter'>5000</Value>
         </Lt>
      </And>
   </Where>

This query will result in only the objects with IDs between 1 and 5000 being scanned. This query can be adapted to scan in increments so that the timeout error is avoided.

Installation

The migration-center SharePoint Scanner requires installing an additional, separate component from the main product components. The migration-center SharePoint Scanner is a SharePoint Solution which manages the scan (extraction) process from Microsoft SharePoint Server. This component will need to be installed and deployed manually on the machine hosting the Microsoft SharePoint Server. The required steps are detailed in this chapter.

To install the main product components consult the migration-center Installation Guide document.

To install the migration-center SharePoint Scanner, read on.

Requirements

The migration-center SharePoint Scanner is implemented as a SharePoint Solution, a functionality supported only with Microsoft SharePoint Server 2007 or newer.

Since the migration-center SharePoint Scanner Solution must be installed on the same machine as Microsoft SharePoint Server, the range of Windows operating systems supported is the same as those supported by Microsoft SharePoint Server 2007-2013 respectively. Please consult the documentation for Microsoft SharePoint Server 2007-2016 for more information regarding supported operating systems and system requirements.

Administrative rights are required for performing the required uninstallation, installation and deployment procedures described in this chapter.

Installing migration-center Server Components

Follow the standard installation procedure described in the Installation Guide to install the migration-center Server Components containing Job Server and corresponding part of the SharePoint Scanner.

Installing the SharePoint Solution part of the SharePoint Scanner

1. Connect to the SharePoint Server (log in directly or via Remote Desktop); in a farm, any server should be suited for this purpose.

2. Copy the McScanner.wsp file from <migration-center Server Components installation folder>/lib/mc-sharepoint-scanner/Sharepoint <SPVersion> to a location on the SharePoint Server

3. Open an administrative Command Prompt

4. Navigate to C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\<Hive Folder>\BIN

5. Use the STSADM tool to install the SharePoint Solution part of the SharePoint Scanner STSADM –o addsolution –filename <path to the file copied at step 2>\McScanner.wsp

For SharePoint 2010, 2013 and 2016 an alternative installation using PowerShell is possible and can be used if preferred:

1. Connect to the SharePoint Server (log in directly or via Remote Desktop); in a farm, any server should be suited for this purpose.

2. Copy the McScanner.wsp file from <migration-center Server Components installation folder>/lib/mc-sharepoint-scanner/Sharepoint <SPVersion> to a location on the SharePoint Server

3. Open the SharePoint Management Shell from the Start menu

4. Use the following PowerShell commands to install the SharePoint Solution part of the SharePoint Scanner Add-SPSolution <path to the file copied at step 2>\McScanner.wsp The output should be like

Name	SolutionId	Deployed
mcscanner.wsp	f905025e-3de7-44c9-828a-f7b12f726bc1	False

Deploying the SharePoint Scanner solution

Having installed the SharePoint Solution it is now time to deploy it. Due to differences in the various SharePoint versions’ management interfaces, the procedure differs slightly depending on the version used. Follow the steps below corresponding to the targeted SharePoint version:

SharePoint 2007:

1. Open SharePoint Central Administration

2. Go to Operations

3. Under Global Configuration, click Solution Management

4. Click McScanner.wsp and follow instructions to deploy the solution.

SharePoint 2010, 2013 and 2016:

1. Open SharePoint Central Administration

2. Go to System Settings

3. Under Farm Management, click Manage Farm Solutions

4. Click McScanner.wsp and follow the instructions to deploy the solution

Verify the solution works correctly after deployment by calling the following URL in a web browser:

http://<your sharepoint farm>/_vti_bin/McScanner.asmx?wsdl

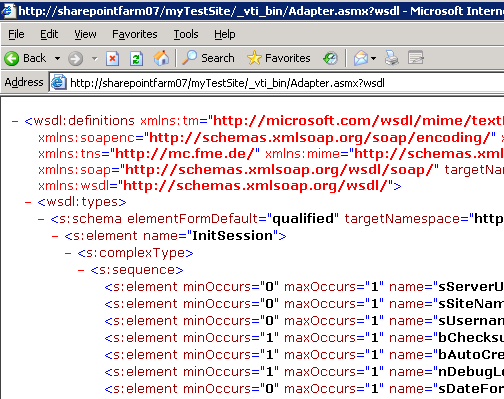

If the output looks like picture below, deployment was successful and the SharePoint Scanner is working.

Configuration

Configure Java keystore for using a secure SharePoint connection

Since the SharePoint Scanner is split between two components (the mc Job Server part running in Java, and the SharePoint Solution part running on IIS), these two components need some additional configuration to communicate between one another in case the SharePoint site is configured to run over HTTPS using the SSL protocol.

In this case the issuer of the server’s SSL certificate must set as a trusted certification authority on the JVM used by the Job Server to allow the Job Server component of the SharePoint Scanner to trust and connect to the secure SharePoint site.

Follow the steps below to register the certification authority with the JVM:

1. Export the certificate as a .cer file

2. Transfer the file to the machine running the Job Server

3. Open a command prompt

4. Import the certificate file to the Java keystore using the following command (use the actual path corresponding to JAVA_HOME instead of the placeholder; the below is one single command/line!) JAVA_HOME\bin\keytool –import –alias <set an alias of your choice, e.g. SP2013> -keystore ..\lib\security\cacerts –file <full path and name of certificate file from step 2>

5. Enter “changeit” when asked for the password to the keystore

6. The information contained in the certificate is displayed. Verify the information is correct and describes the certification authority used to issue the SSL certificate used by the secure SharePoint connection

7. Type “y” when prompted “Trust this certificate?”

8. “Certificate was added to keystore” is displayed, confirming the addition of the CA from the certificate as a certification authority now trusted by Java.

9. Restart the Job Server

Repeat the above steps for all machines if you have multiple Job Servers with the SharePoint Scanner running.

SharePoint Scanner Properties

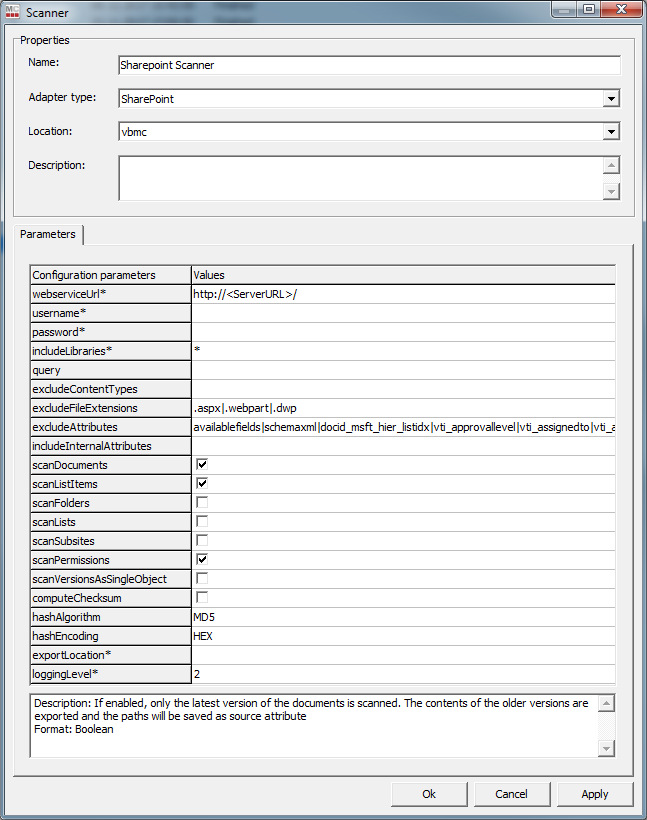

To create a new SharePoint Scanner, create a new scanner and select SharePoint from the Adapter Type drop-down. Once the adapter type has been selected, the Parameters list will be populated with the parameters specific to the selected adapter type. Mandatory parameters are marked with an *.

The Properties of an existing scanner can be accessed after creating the scanner by double-clicking the scanner in the list or selecting the Properties button/menu item from the toolbar/context menu. A description is always displayed at the bottom of the window for the selected parameter.

Multiple scanners can be created for scanning different locations, provided each scanner has a unique name.

Common scanner parameters

Configuration parameters	Values
Name	Enter a unique name for this scanner Mandatory
Adapter type	Select SharePoint from the list of available connectors Mandatory
Location	Select the Job Server location where this job should be run. Job Servers are defined in the Jobserver window. If no Job Server has been created by the user to this point, migration-center will prompt the user to define a Job Server Location when saving the Scanner. Mandatory
Description	Enter a description for this job (optional)

SharePoint Scanner parameters

Configuration parameters	Values
webserviceUrl*	This is the URL to the SharePoint Scanner component installed on the SharePoint Server Also see chapter 3 Configuration for more information. Example: http://<sharepointfarm>/<site>/ Mandatory
Username*	The SharePoint user on whose behalf the scan process will be executed. This user also needs to be able to access the temporary storage location where the scanned objects will be saved to (see parameter exportLocation below). Should be a SharePoint Administrator. Example: sharepoint.corporate.domain\spadmin Mandatory
Password*	Password of the user specified above Mandatory
includeLibraries*	List of Document Libraries the connector should scan. Multiple values can be entered and separated with the “|” character. At least one valid Document Library must be specified Mandatory
query	Sharepoint CAML query for a detailed selection of scan documents. Does not work with excludeContentTypes.
excludeContentTypes	Exclude unneeded content types when scanning the document libraries specified above. Multiple values can be entered and separated with the “|” character.
excludeFileExtensions	Exclude unneeded file types when scanning the document libraries specified above. Multiple values can be entered and separated with the “|” character.
excludeAttributes	Exclude unneeded columns (attributes) when scanning the document libraries specified above. Multiple values can be entered and separated with the “|” character.
includeInternalAttributes	List of internal SharePoint attributes to be scanned
scanDocuments	If enabled the scanner will a process all the Documents it encounters for the configured valid path
scanListItems	If enabled the scanner will a process all the List Items it encounters for the configured valid path
scanFolders	If enabled the scanner will a process all the Folders it encounters for the configured valid path
scanLists	If enabled the scanner will a process all the Lists/Libraries it encounters for the configured valid path
scanSubsites	If enabled the scanner will a process the data of the subsites
scanPermissions	If enabled each created item no matter the type will have the Permissions scanned into the migration center database for further use in the migration process
scanVersionsAsSingleObjects	If enabled the scanner will process each version tree as a single object in MC, which contains the content and metadata of the latest version and also the link to the contents of the other versions in the mc_previous_version_content_paths attribute
computeChecksum	If enabled the scanner calculates a checksum for every content it scans. These checksums can be used during import to compare against a second checksum computed during import of the documents. If the checksums differ, it means the content has been corrupted or otherwise altered, causing the affected document to be rolled back and transitioned to the “import error” status in migration-center.
hashAlgorithm	Specifies the algorithm to be used if the computeChecksum parameter is checked. Supported algorithms: MD5, SHA-1, SHA-224, SHA-256, SHA-384 and SHA-512. Default algorithm is MD5. Note that SHA-224
hashEncoding	Specified the encoding to be used if the computeChecksum parameter is checked. Supported algorithms: HEX and Base64. Default is HEX.
exportLocation*	Folder path. The location where the exported object content should be temporary saved. This location is relative to the SharePoint server, thus the account specified above needs access to it. The export location can be both a local folder on the SharePoint server or a network share (recommended). Mandatory
loggingLevel*	Sets the verbosity of the log file. Values: 1 - logs only errors during scan 2 - is the default value reporting all warnings and errors 3 - logs all successfully performed operations in addition to any warnings or errors 4 - logs all events (for debugging only, use only if instructed by fme product support since it generates a very large amount of output. Do not use in production) Mandatory

Export location requirements

When scanning from SharePoint, the “exportLocation” parameter must be set.

For ensuring proper functionality of the content export there are a few considerations to keep in mind:

• Regarding the path: The export location should (ideally) be a UNC path that points to a shared location (e.g., \\server\fileshare). If a local system path is used (D:\Temp), this path will be relative to the SharePoint Server where the WSP solution is running, and NOT to the Job Server machine.

• Regarding the credentials: For accessing the specified file share the SharePoint scanner will use the credentials provided in the scanner configuration. Therefore, the same user used to do the migration (e.g., sharepoint\mcuser) must have write permissions on the file share.

Scanning using the CAML query

Starting from version 3.3 of migration-center the SharePoint scanner is able to use SharePoint CAML queries for filtering which objects are to be scanned. Based on the entered query, the scanner scans documents, folders and list items in the lists/libraries, which are specified in the parameter “includeLibraries”. If the parameter “includeLibraries” contains *, the query applies to all lists/libraries within the site.

The following example shows a simple CAML query for scanning the contents of the "Level1" folder inside the "TestLib" library alongside all its subfolders: <Where> <BeginsWith> <FieldRef Name='FileDirRef'/> <Value Type='Text'>/sites/mc/TestLib/Level1</Value> </BeginsWith> </Where>

For details on how to form CAML queries for each version of SharePoint please consult the official Microsoft MSDN documentation.

When using the CAML query parameter “query” the “excludeContentTypes” parameter must be empty. Otherwise the scanner will fail to start with an error message.

Extra logging

Additional logs are generated by the SharePoint Solution part of the SharePoint Scanner on the server side. The location of this log file can be configured through the file C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\15\CONFIG\ Migration_Center_SP_Scanner.config .

Open the file with a text editor and edit the line below to configure the path to the log file

<file type="log4net.Util.PatternString" value="C:\MC\logs\%property{LogFileName}" />

Only change the path to the file, do not change the name! (the %property{LogFileName} part).
