WebClient User Guide
Last updated
Last updated
The migration-center WebClient is a new component introduced in version 22.1.0 and serves to replace the Desktop Client in order to provide a better experience and add new features and improvements in the coming versions. It is delivered as a customized Tomcat that is installed as a windows service. The WebClient is currently compatible with Google Chrome and Microsoft Edge.
Scanner is the term used in migration-center for an input connector. It is used to read the data that needs processing into migration-center and is the first step in a migration project.
Importer is the term used for an output connector used as the last step of the migration process. It takes care of importing the objects processed in migration-center into the target system.
Scanners or importers have a unique name, a set of configuration parameters and an optional description. They work as a job that can be run at any time and can be executed repeatedly.
Scanners and importers are created, configured, started and monitored through migration-center WebClient but the corresponding processes are executed by migration-center Job Server.
For every run a detailed history and log file are created.

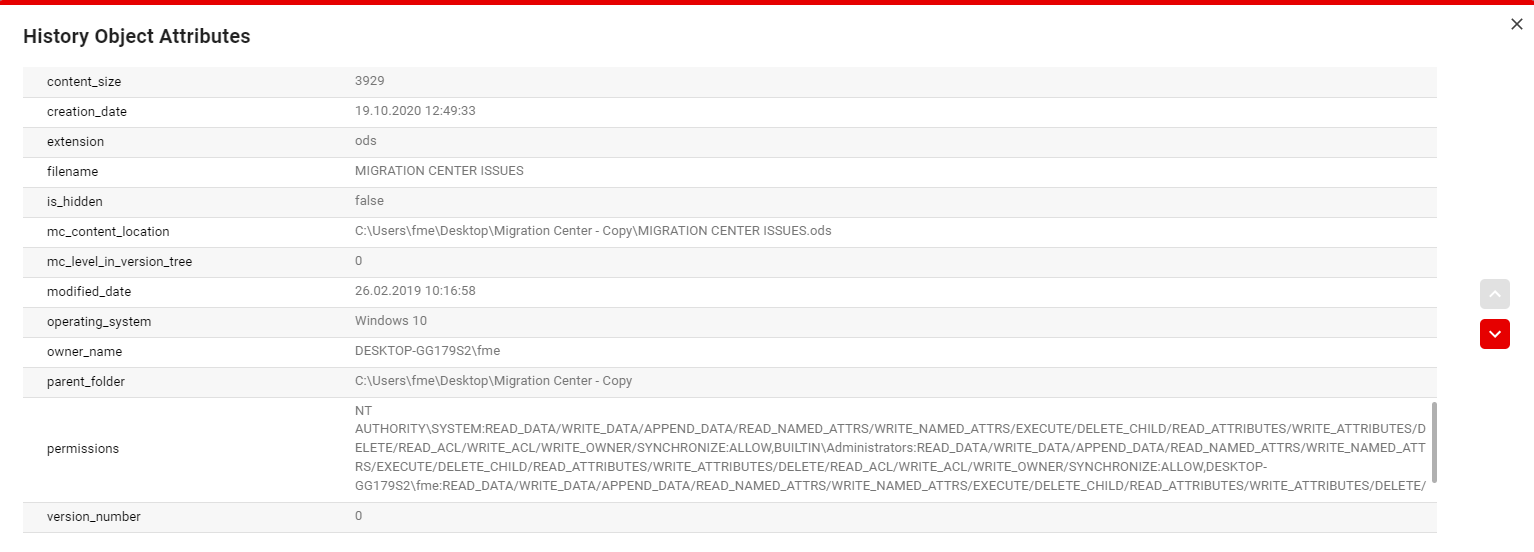

A complete history is available for any Scanner or Importer job from the Scan Runs / Import Runs window.
This section displays a list of all runs for the selected job together with additional information, such as the number of processed objects, the status, the start and ending time.
Version information of the migration-center Server Components the job was run with
The parameters the job was run with
Execution Summary that contains the total number of objects processed, the number of documents and folders scanned or imported, the count of warnings and errors that occurred during runtime.
The amount of information written to the log files depends on the setting specified in the ‘loggingLevel’ start parameter for the respective job.

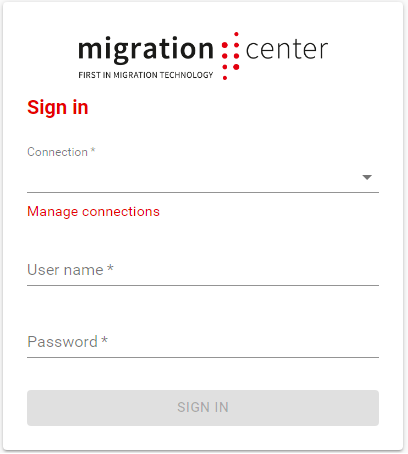

To connect to a migration-center database, open the WebClient URL address in the browser: https://<server-name>/mc-web-client/login
Connection Select one of the available connections to the server from the list. If no connections are available or if you want to modify an existing one, click Manage connections.
Manage connections You can create, modify and delete a connection and you can also refresh the list of existing connections.
To create a connection, click the Add Connection + button and then, in the New Database Connection dialog box, type your Connection Name, Database Type, Host, Port number and Service Name. When finished, click CREATE.
Return to the Sign in page either by double clicking the desired connection, by right-clicking the desired connection and selecting Log in using this connection or by clicking the Back < button on the buttons bar and then logging in.
User name Type your username (default fmemc).
Password Type your password (default migration123).
When finished, click SIGN IN.
If you are unable to sign in, a notification with the reason will be displayed in the bottom the the page.
You can easily navigate through the migration-center WebClient sections using the sidebar on the left, as follows:
| UI element | Section name | Used to: |
|---|---|---|
Jobs | Start, stop or pause running jobs. This section also displays running scan and import jobs. Along with the description, the run number, start/end date. | |
Scanners | Create and configure scanners that connect to a source systems and extract documents and metadata as migration-center objects. | |
MigSets | Split the scanned objects into migration sets and define all the transformation rules and generate the target objects ready for import. | |
Importers | Create and configure importers that take migration sets with validated objects and imports them in a target system. | |
Schedulers | Create schedulers that run automated end to end migrations at regular intervals. | |
Dashboard | View graphs and analyze the status of the entire migration. | |
Configure | Create and manage Job Server definitions, Object Types and Mapping Lists. You can also renew your license and view information in the About section. | |
Help | Go to the documentation page relevant to the section you are currently in. | |
Log out | Disconnect from the current migration-center database. |

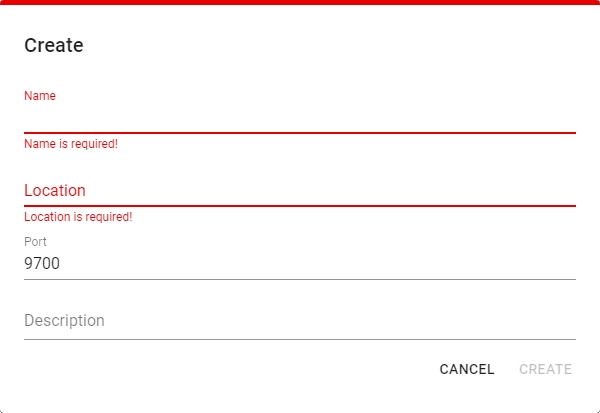

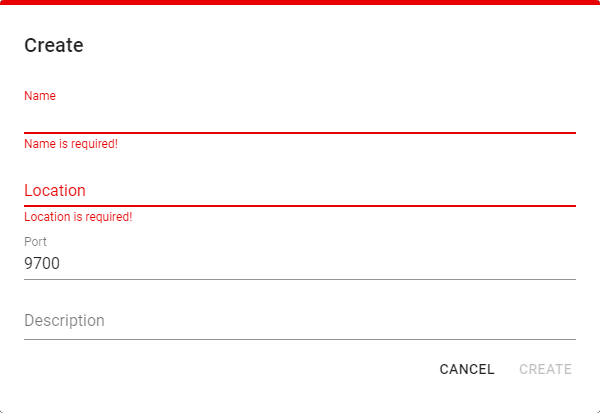

To run a migration, first you need to create a Job Server definition. You can do so in the Jobservers section.
Then, you need to:
Additionally, you can:
If the Jobserver is restarted while a job is running or paused, the job run will still be marked as such in the database, but it will no longer exist in the Jobserver. To restart the job you just need to Stop it first and start it again from the WebClient.
You need to create, configure and run a scanner in order to connect to a source system.
You cannot delete a Scanner or a Scan Run if any objects belonging to it are assigned in a migset.
Deleting a Scanner will also delete and remove all its associated Source Objects from the migration-center database.

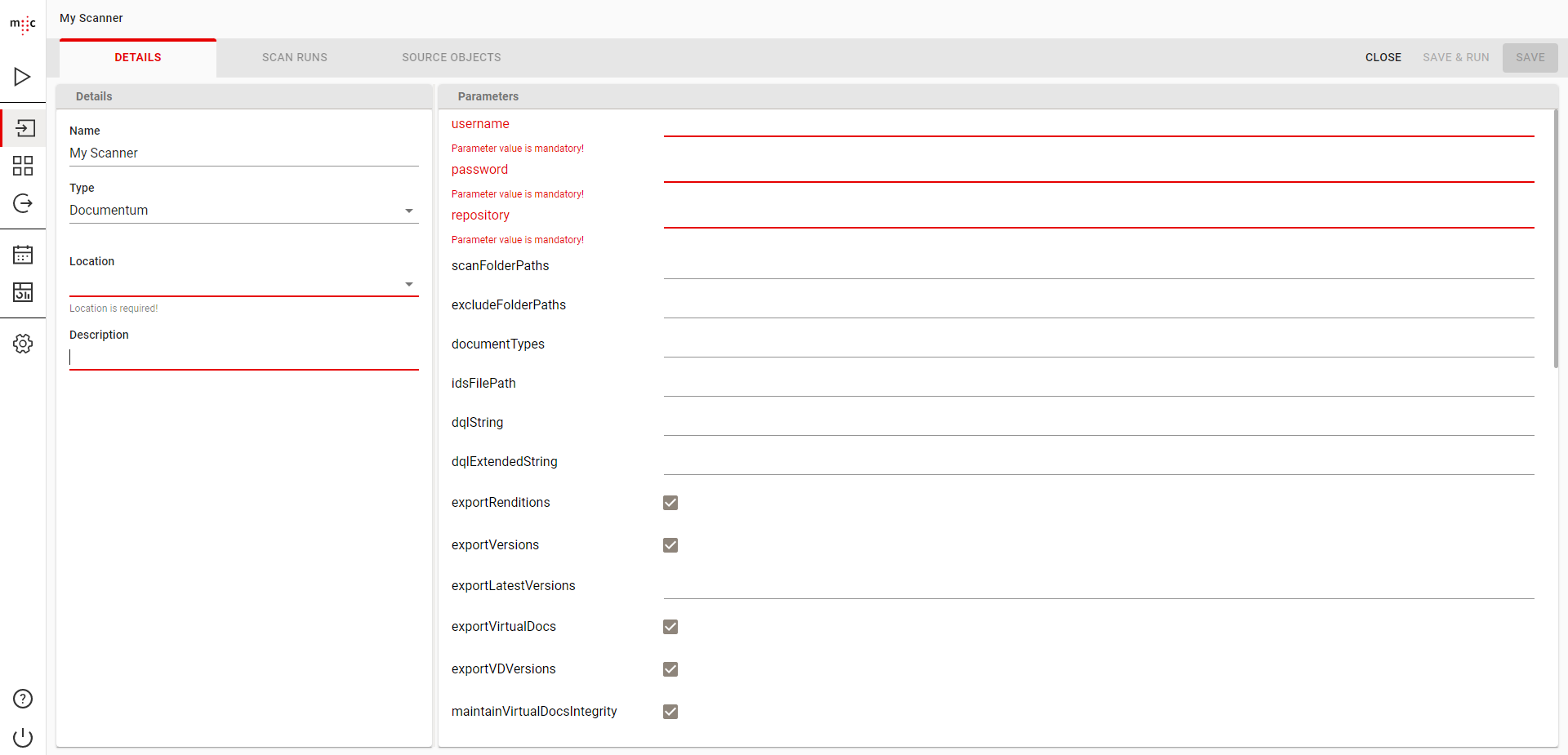

In the DETAILS tab, give your scanner a meaningful Name, then select the Type of connector from the list. Then, depending on the selected connector type, the Parameters section will be populated with the connector's specific configuration parameters.
Depending on the selected connector type, the actual parameters displayed will vary. For more information, consult the individual User Guide of the connector you are configuring.
Next, in the Location field, select the Job Server where your Scanner be executed when you run it. Optionally type a meaningful Description for your scanner.
When finished, click either:
SAVE - if you plan to run the scan later;
SAVE & RUN - to save and run the scanner immediately, in which case you will be prompted to enter a description for this run in the Enter Job Run Description dialog box. By default the run description is the name of the scanner and the number of which run it is.

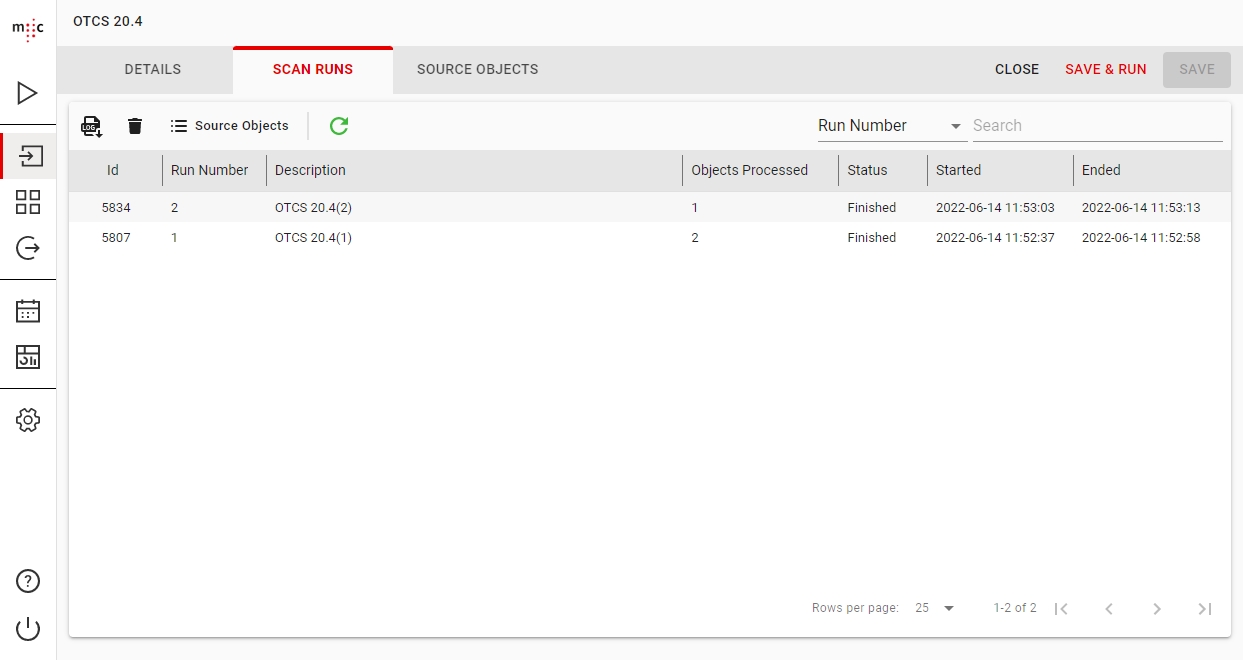

To view the history of your scanner, click the SCAN RUNS tab of a scanner.
When you delete a scan run, all the objects belonging to that run will be deleted and removed from the migration-center database.

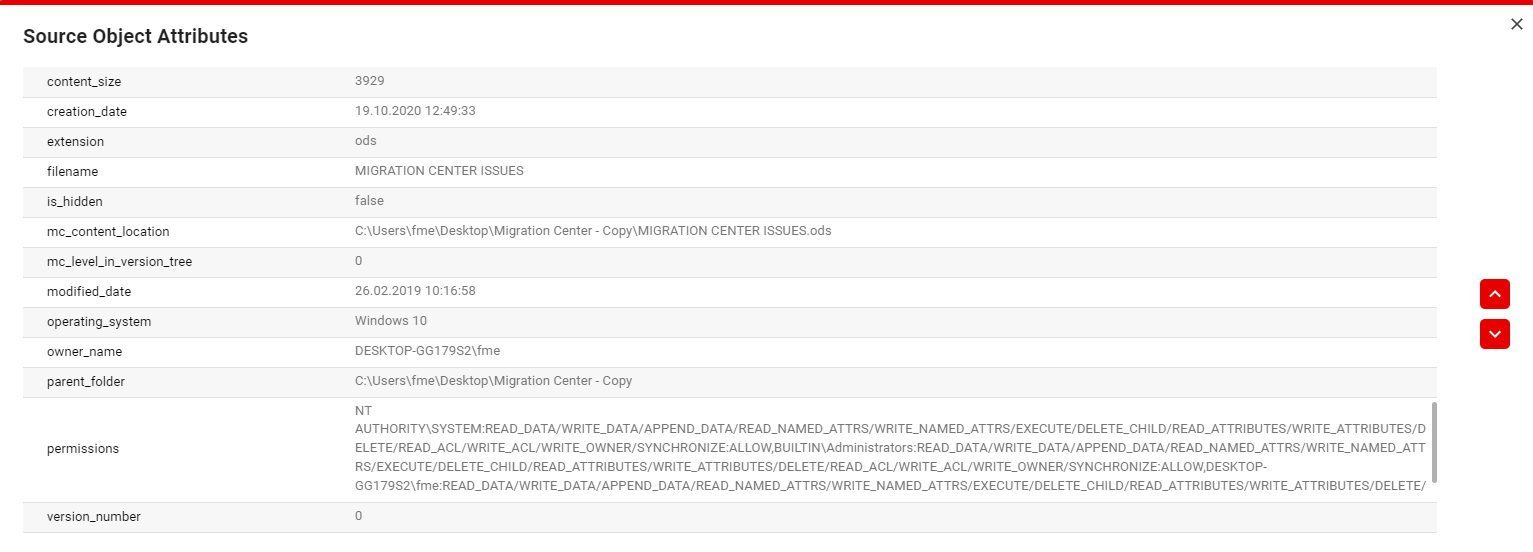

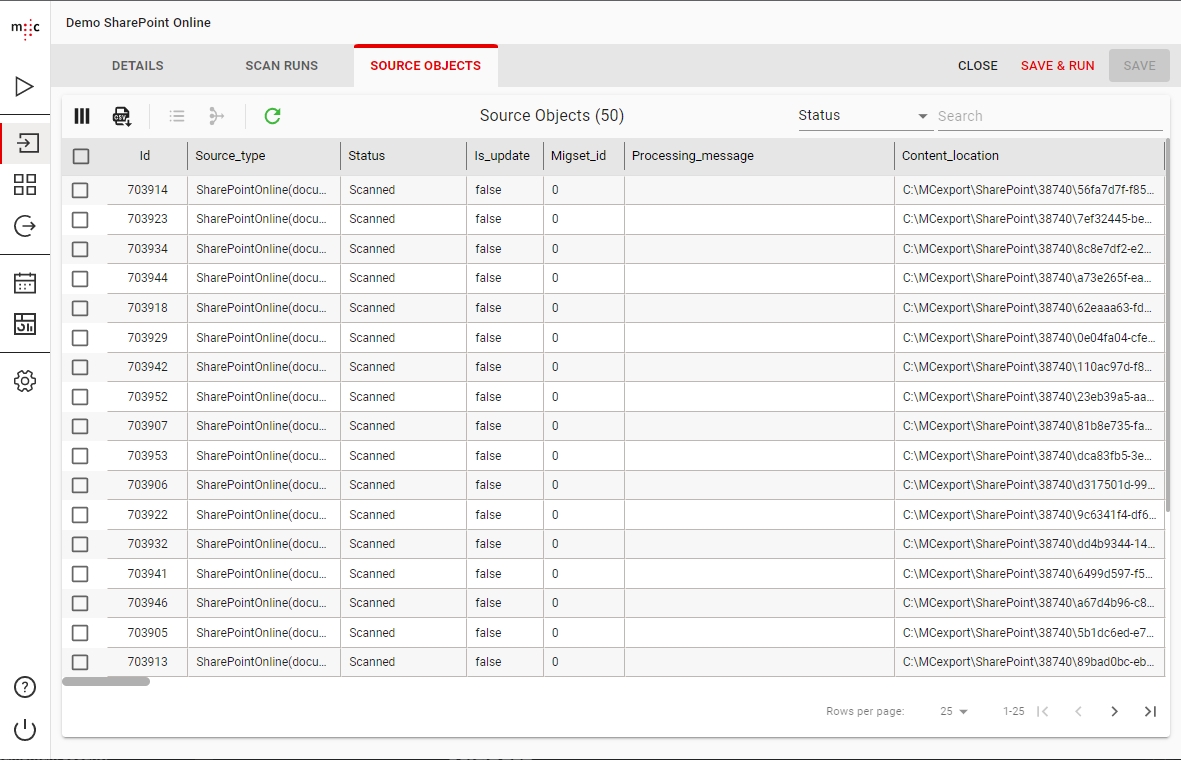

You can view the metadata of the extracted documents for the entire scanner by clicking the SOURCE OBJECTS tab.
The first columns from Id to Import date are internal migration-center columns and the rest represent an attribute from your source system.
You can change the number of rows on a page and navigate between pages using the bottom toolbar.
To Filter objects based on a specific attribute, use the dropdown to the right of the toolbar. This will enable you to select one of the attributes of your objects and then search for values in that attribute.
The Filter on the Object Tables is different than the ones in the main tables. Here the search is done in the database and it uses exact match.
You can use the following wildcards on the object table filters:
% (percent symbol) - match any number of characters
_ (underscore) - match a single character
A migration set, or migset for short, is a grouping of Source Objects on which a set of transformation rules are applied which generates Target Objects.
Source Object metadata is NOT modified during transformation. A copy of the objects is generate with the new metadata, called Target Objects.
Resetting imported objects will break the ability to do Delta Migrations for those objects in the future (scanning and importing updates to the already migrated objects).
Therefore this is NOT recommended unless you plan on deleting them from the Target System and re-importing them.
Transforming, Resetting and Splitting objects are processes triggered in the background and can take a longer time to complete, depending on the number and complexity of the transformation rules, the number of objects in the migset and the performance of the Database.
In the PROPERTIES tab, in the DETAILS subtab, give your MigSet a meaningful Name and optionally a Description.
In the Type dropdown, select the Source to Target system migset type (i.e. FileSystemToDCTM). Once selected, the list of all scan runs that match the Source part of the migset type are displayed under the Available list.
You can also filter which objects are included in the MigSet by using the EXCLUSIONS and the ADVANCED FILTERS subtabs.
You can only filter objects while objects are not currently locked in your migset.
In the EXCLUSIONS subtab, objects are excluded from your MigSet by choosing which attribute values should be excluded. To do so, select the desired attribute under Available attributes and use the < > arrow buttons to exclude the values.
In the ADVANCED FILTERS subtab, you can create rule based filters using operators. Select a Source Attribute, Operator, Values and Connector, the click on ADD to include them. You can also delete rule filters.
You can check your selection by going to the OBJECT PREVIEW subtab.
In the OBJECT PREVIEW subtab, you can see a preview of the filtered objects.
When finished, click the LOCK OBJECTS button to add the selected objects to your MigSet. This means that these objects will be locked in this migset and cannot be used in another one. Then, in the Confirm Object Selection dialog box, click Yes.
Object Locking is done in a background process and can take longer to complete depending on the number of objects being selected and the performance of the Database.
Transformation Rules define how metadata from Source Objects is used to generate new metadata for Target Objects by using Transformation Functions. A transformation rule is equivalent to a Target Attribute after transformation.
Snippet Rules are rules whose value can be used as a step in any other normal rule.
To use a Rule Snippet insert a GetSnippetRuleValue function and enter the name of the Snippet Rule you want to use.
Snippet rules cannot use the GetSnippetRuleValue function.

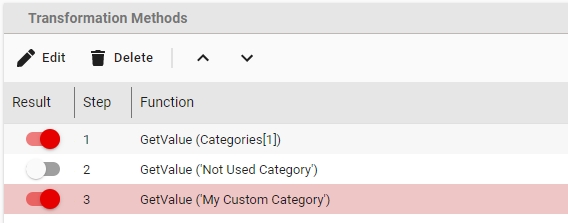

A transformation rule can have multiple transformation functions. They can take source attributes, static strings or even previous functions as the input value and provide an output value.
See TR Function Reference page for a list of all available functions.
To add a Transformation Function:
Select the Transformation Rule you want to add a function to.
Under Transformation Methods, select the desired transformation Function you want to use and click on INSERT FUNCTION.

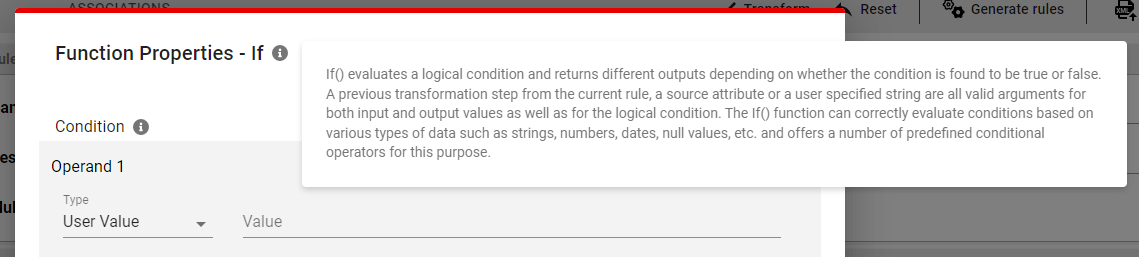

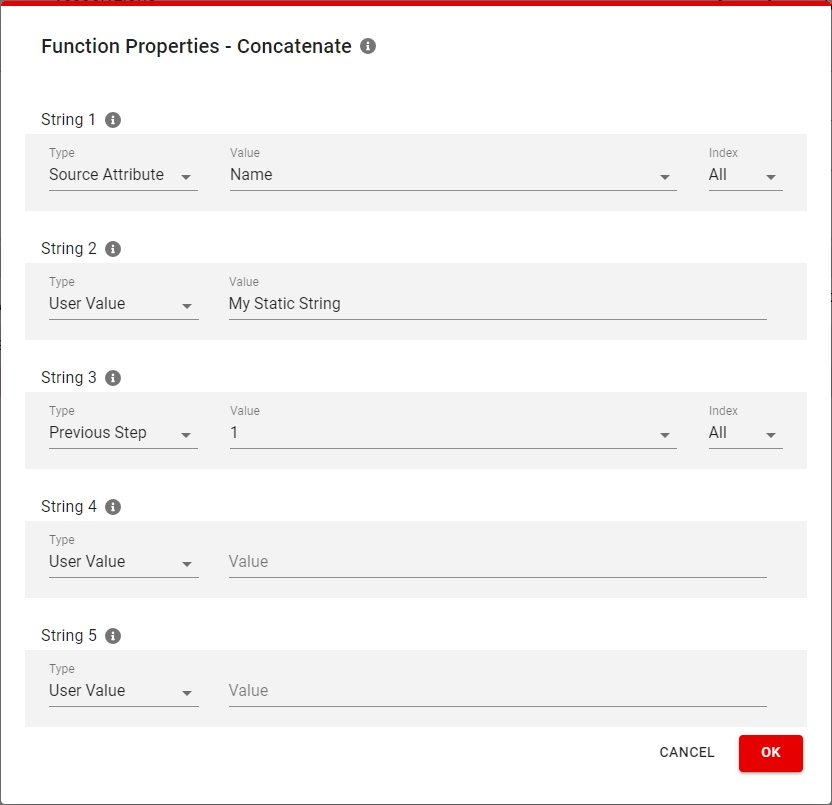

Fill the function parameters in the popup (the parameters vary depending on the function).
Click OK to insert the function or CANCEL to close the popup.
Multi-value Transformation Rules
Attributes from a source object can be Single Value or Multi Value (Repeating). A Transformation Rule can process both these kinds of attributes, but if the rule itself is not marked as MultiValue using the checkbox in the Rule Properties it will return only the last processed value.

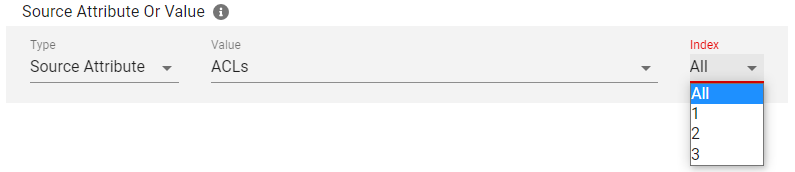

A transformation function can process All values or only the value at a specific index of a repeating attribute.
After making a Transformation Rule into a multi value one, you can also return multiple functions as separate repeating values using the Result toggle.
A transformation rule can be debugged by taking a sample source object and us its metadata to see the results of each step in the rule.
Get the ID of an object whose metadata will be used for debugging the rule.
Select the rule you wish to debug.
Enter the Object ID in the text field next to the DEBUG RULE button.
Click the DEBUG RULE button.
The value for each step is calculated based on the metadata of the selected object and displayed in the Debug Values column.
Double clicking on the Debug Value of a step opens the value in a dialog window for better viewing.
Debug values does not take into account if your rule is single or multivalue.
Ex: in a single value rule, repeating values will be displayed at the last step when using Debug, but only the first value of the repeating values will end up in the transformation.
Generate Rules
Using the generate rules feature will delete any existing transformation rules and changes will be saved automatically after the confirmation dialog.
Other Features
You can also Transform or Reset the objects of this migset without returning to the list of migsets.
Limitation: If you import new rules into a Migset that already has transformed objects, the attribute names and values will not be displayed correctly in the Objects views.
You need to reset and transform the objects again to get the new metadata displayed correctly.
The migset mapping lists function in the same way as regular mapping lists except they are usable only in the migset they belong to.
Fore more details please see the main Mapping Lists section.

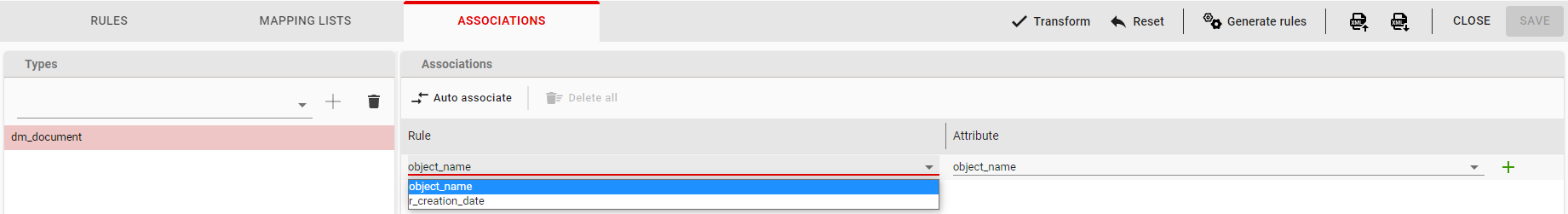

Transformation Rules are not automatically used when importing an object. They need to be associated to a Target Attribute of an Object Type in the Associations subtab of the migset.
See Object Types for more information.
Each Migset has a target type system rule that determines to which type an object will be associated with. This rule differs depending on the migset type. For example for any ...ToDCTM migset the rule is r_object_type.

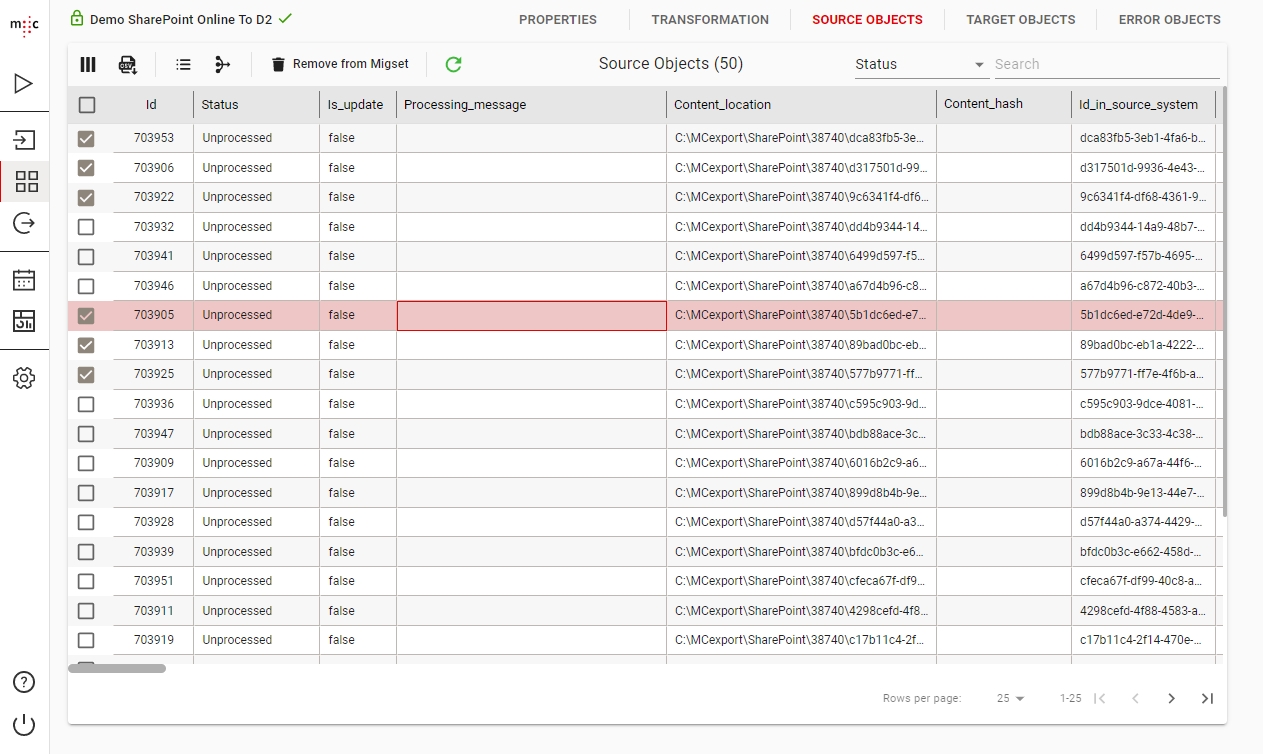

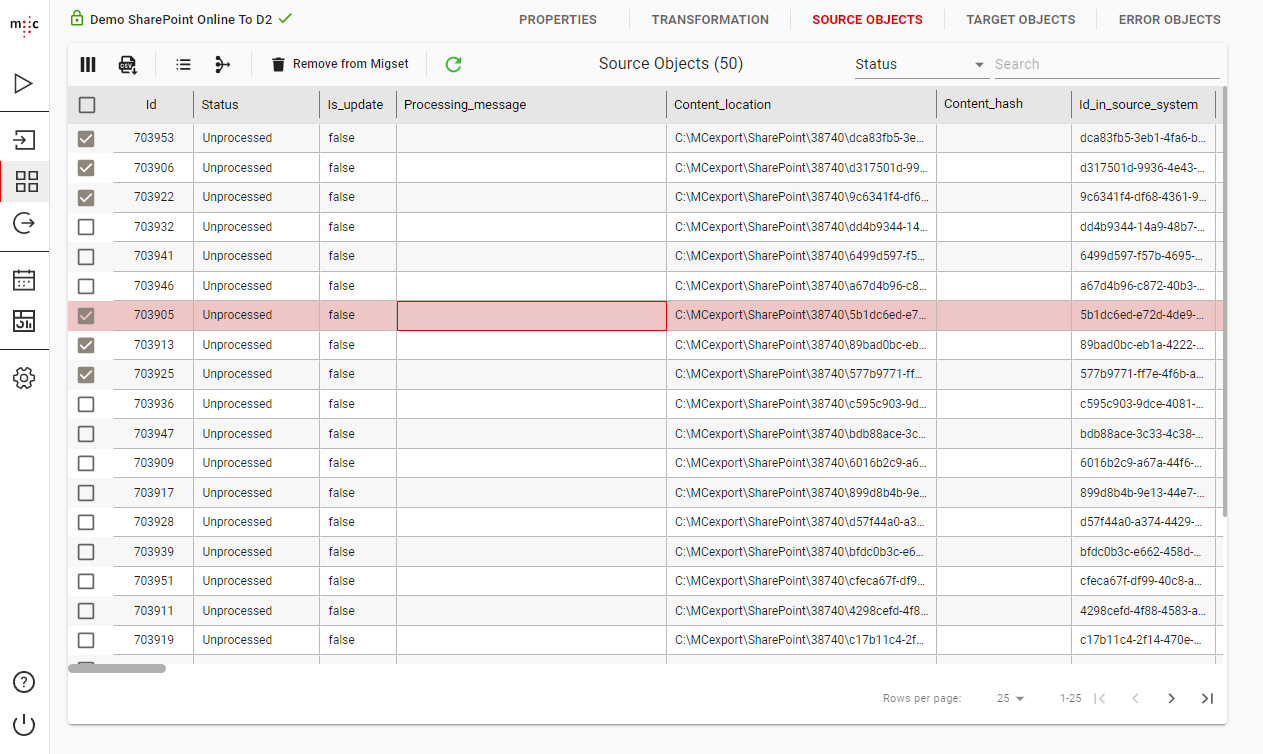

You can view the source attributes of the objects in the MigSet by clicking the SOURCE OBJECTS tab.
The first columns from Id to Import date are internal migration-center columns and the rest represent an attribute from your source system.
You can change the number of rows on a page and navigate between pages using the bottom toolbar.
To filter objects based on a specific attribute, use the dropdown to the right of the toolbar. This will enable you to select one of the attributes of your objects and then search for values in that attribute.
The Filter on the Object Tables is different than the ones in the main tables. Here the search is done in the database and it uses exact match.
You can use the following wildcards on the object table filters:
% (percent symbol) - match any number of characters
_ (underscore) - match a single character
Objects removed from a MigSet are still present in their Scanner and can be selected in other MigSets.

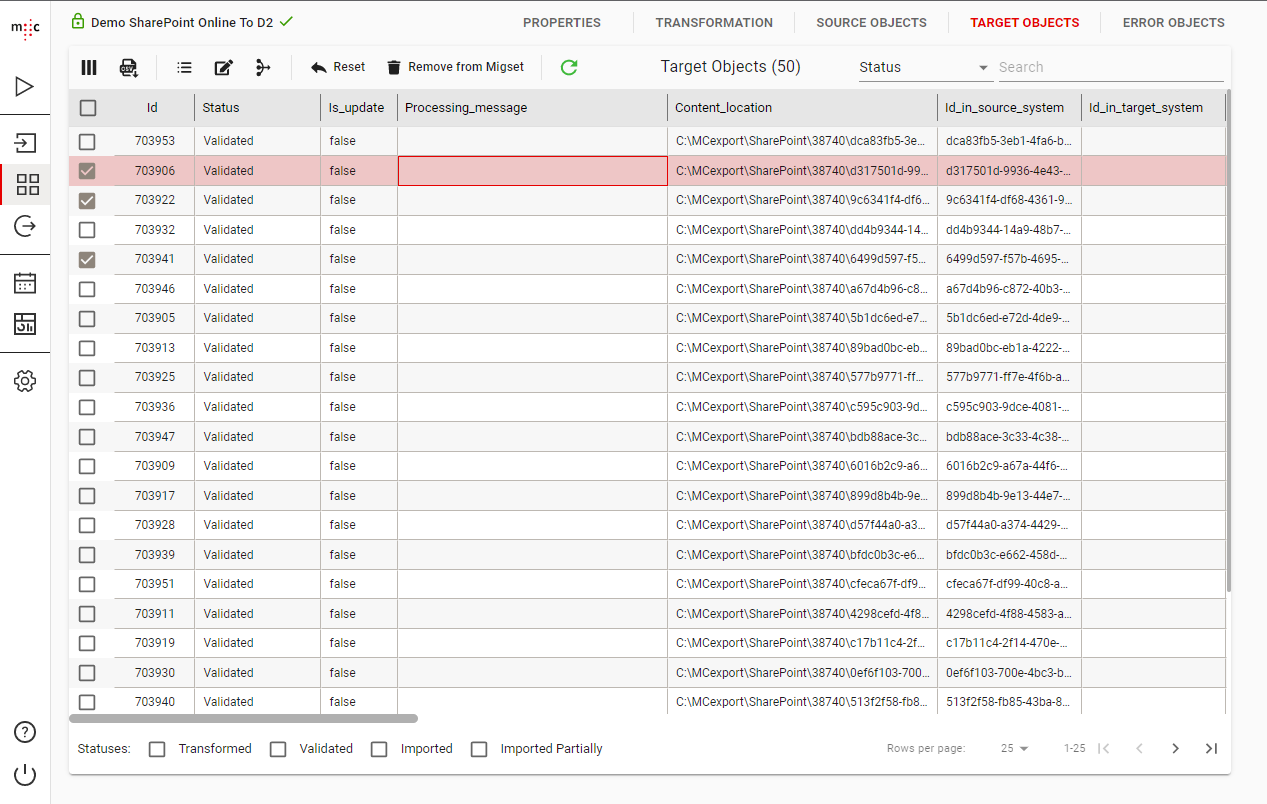

You can view the attributes generated by the transformation rules of the objects in the Migset by clicking the TARGET OBJECTS tab.
Please see the Source Objects section for features common to all Objects Views, including Target Objects.
After manually editing an object, the object will be set to the Transformed state. In order to have the object Validated you need to run transformation again on the MigSet. This will not affect your manual changes and will validate the edited objects.
To Filter objects based on their status, use the Statuses checkboxes in the bottom toolbar.
You can view the objects that encountered errors during the Transform, Validate or Import phases in the MigSet by clicking the ERROR OBJECTS tab.
The Error Objects tab has features present in the Source Objects and Target Objects tab.
Importers will connect to the Target System, take the selected MigSet with Validated Objects and import them. You can monitor the progress in the Importer run history or directly in the MigSets view.

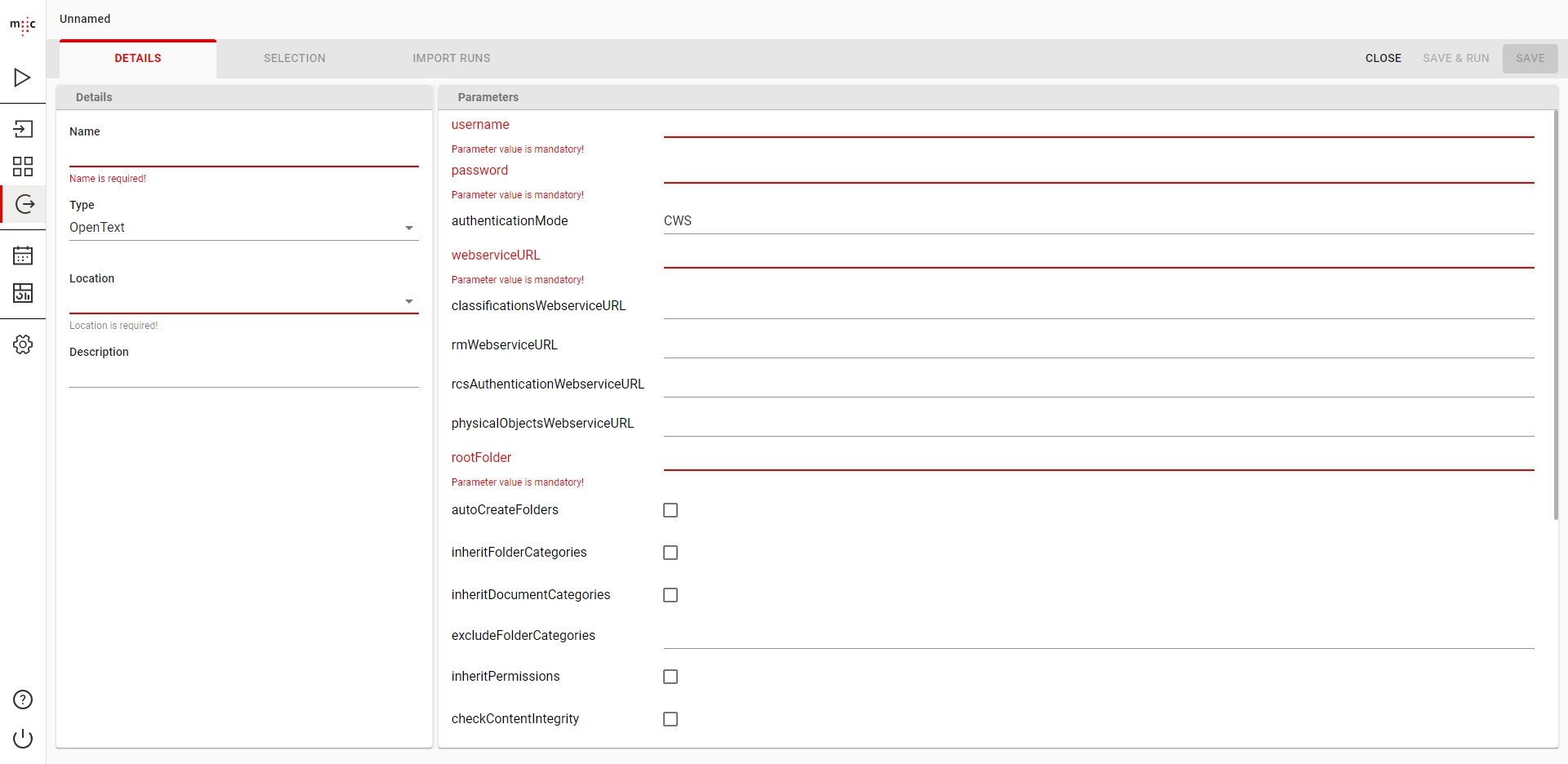

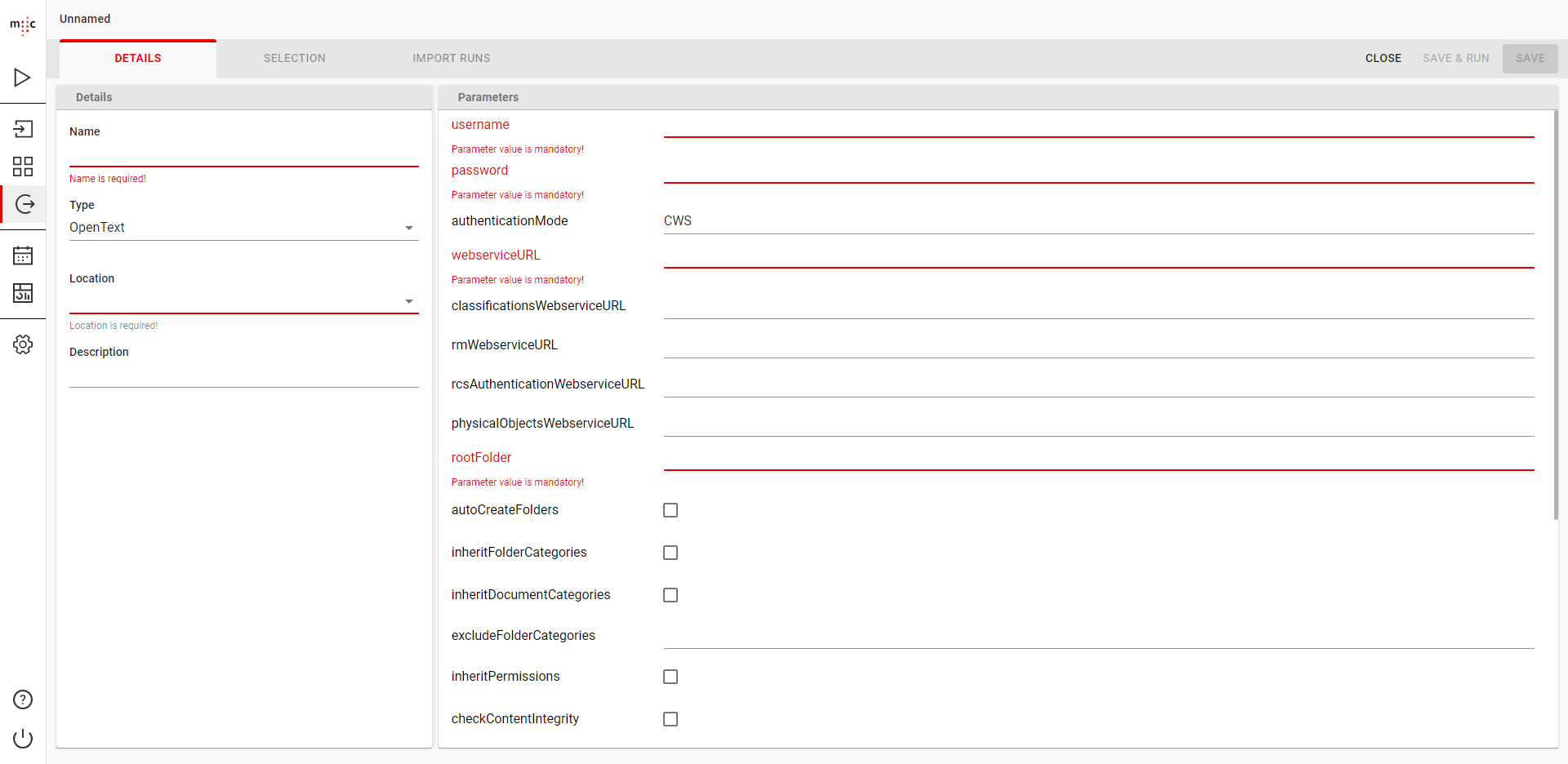

In the DETAILS tab, give your Importer a meaningful Name, type or select the Importer Type from the list and complete the needed Parameters.
Depending on the selected importer type, the actual parameters displayed will vary. For more information, consult the individual User Guide of the connector you are configuring
Next, in the Location field, select the Job Server where your Importer be executed when you run it. Optionally type a meaningful Description for your scanner.
In the SELECTION tab, under AVAILABLE MIGSETS you can see MigSets with validated objects that match your target destination: for example, for an OpenText importer, only MigSets with the type ...ToOpenText will be displayed. Double-click the desired MigSet to add it to the ASSIGNED MIGSETS list to be migrated. Note that only validated objects or error objects that previously failed an import will be processed.
When finished, click either:
SAVE - if you plan to run the import later;
SAVE & RUN - to save and run the import immediately, in which case you will be prompted to enter a description for this run in the Enter Job Run Description dialog box. By default the run description is the name of the importer and the number of which run it is.
To view the history of your importer, click the IMPORT RUNS tab of an importer.
Delta Migration is a feature of migration-center that allows you to migrate updates made to documents that have already been scanned and newly created documents that were not scanned yet.
This feature is possible using most available connectors.
Check the user guide for your connector to confirm if it is capable of delta migration and to see if there are any pre-requisites or limitations.
You need to have the initial batch of objects scanned, transformed and imported successfully. In the target system the imported objects need to be present.
The original MigSet/s must not be changed by resetting or unlocking the objects or by deleting the MigSet. If this happens, update objects cannot be imported.
You can start a delta migration by running either the same original scanner or any scanner that will pick up already scanned objects. If these objects have been modified since the original scan, they will be scanned again as an update object, otherwise they will be ignored. New objects, that were not scanned before will be scanned normally.
Update objects can be identified by having the is_update attribute value set to 1 or True.
Please check the configuration for your scanner for any update specific options
Since the original MigSet needs to be left untouched with all objects intact, and the delta migset needs the same rules, the best way to do this is to create a copy of the original migset.
Transform the migset used for the Delta Migration, as you would normally.
The Delta MigSet can be selected in the same Importer used for the original import, or in any other importer as required.
The Delta Import will create all new objects normally and it will locate already imported objects in the target system and update their metadata and content as needed.
The Scheduler feature only works with migration-center running on an Oracle database.
A Scheduler is used to automate an end to end migration and is useful when needing to make regular delta scans and imports for a Source System that changes often.
The workflow of a Scheduler is as follows:
It will run the selected Scanner
If there are objects in the Scan Run, it will create a copy of the selected Migset, assign the Scan Run to it and Transform the objects
If there are Validated Objects after the transformation, it will assign the migset to the Importer and run it.
If Email Report is set it will send the email as configured, when the import ends.
To run a Scheduler the Database Server also needs to access the Jobserver configured for the Scanner and Importer on the selected Port. The reason being that the Oracle Database will start the jobs directly.
In the CONFIGURATION tab, configure the Details of your scanner, such as Name, Description and whether you want to set the scheduler to Active.
Next, select the Scanner, MigSet and Importer by clicking the respective buttons. The list of Migsets will be filtered to match the selected Scanner type and the list of Importers will be filtered to match the selected Migset type.
In the FREQUENCY tab, configure the Start Date when this scheduler will be running from and either the End Date or the number of runs after which it will stop.
In the Interval section configure a timeslot and the Frequency at which the Scheduler will start.
In the Email Report section you can set an Email Address where the scheduler will send reports and whether you want the report send in case of Success or in case of Error. You also need to have an SMTP Server to use for sending the email reports.
In the IMPORTED OBJECTS tab, you can see the list of objects imported by your scheduler.
In the ERROR OBJECTS tab, you can see the list of errors that may have occurred during the scheduled migration. When finished, click Save on the top right corner.
In the HISTORY tab, you can see all the runs of the selected Scheduler.
To view the Imported Objects or Error Objects, select a run and click on their respective icons.

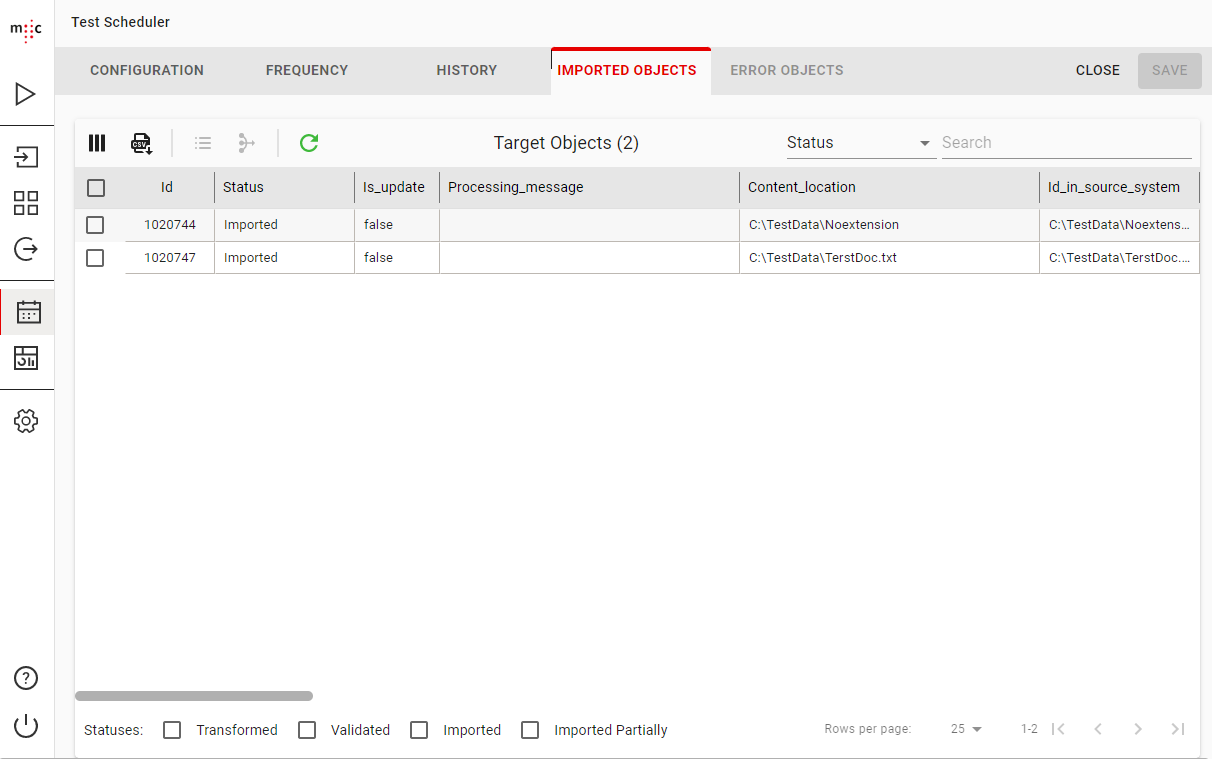

Here you can view the list of Imported Objects for the selected Scheduler Run.
The Imported Objects view features are common among the other Object Views. Please see Source Objects for details.

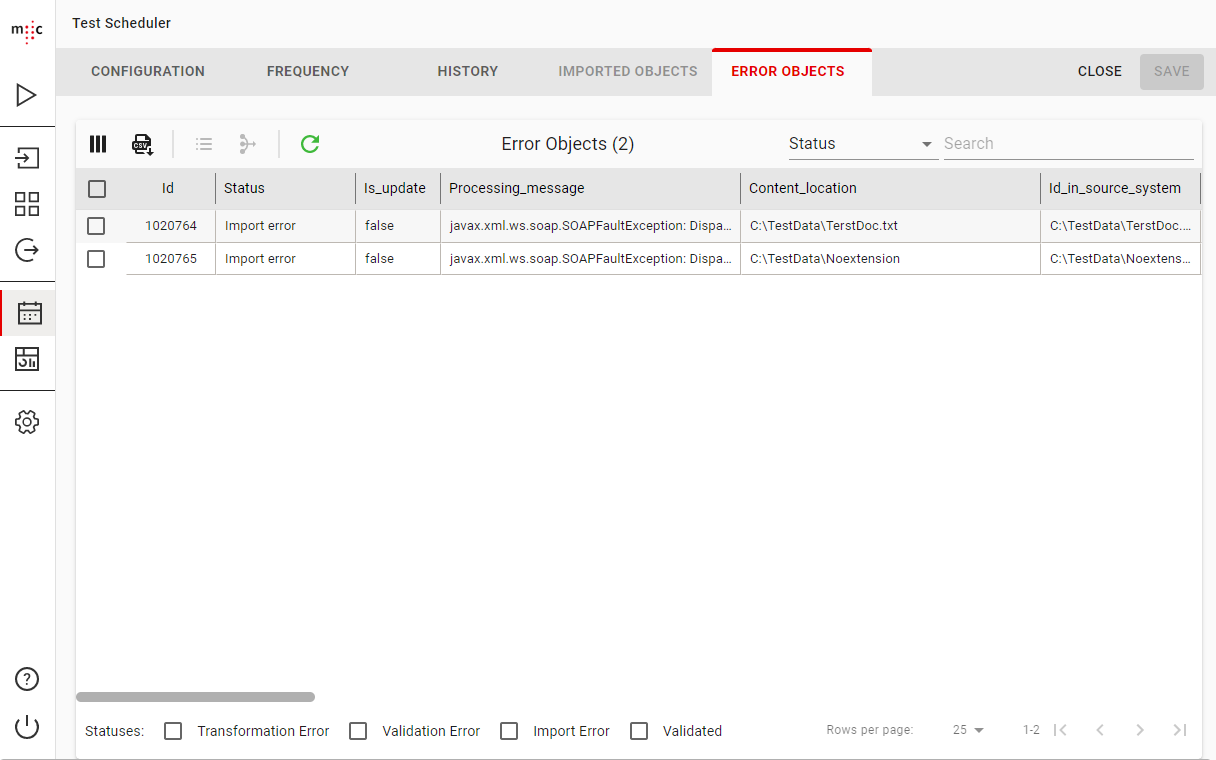

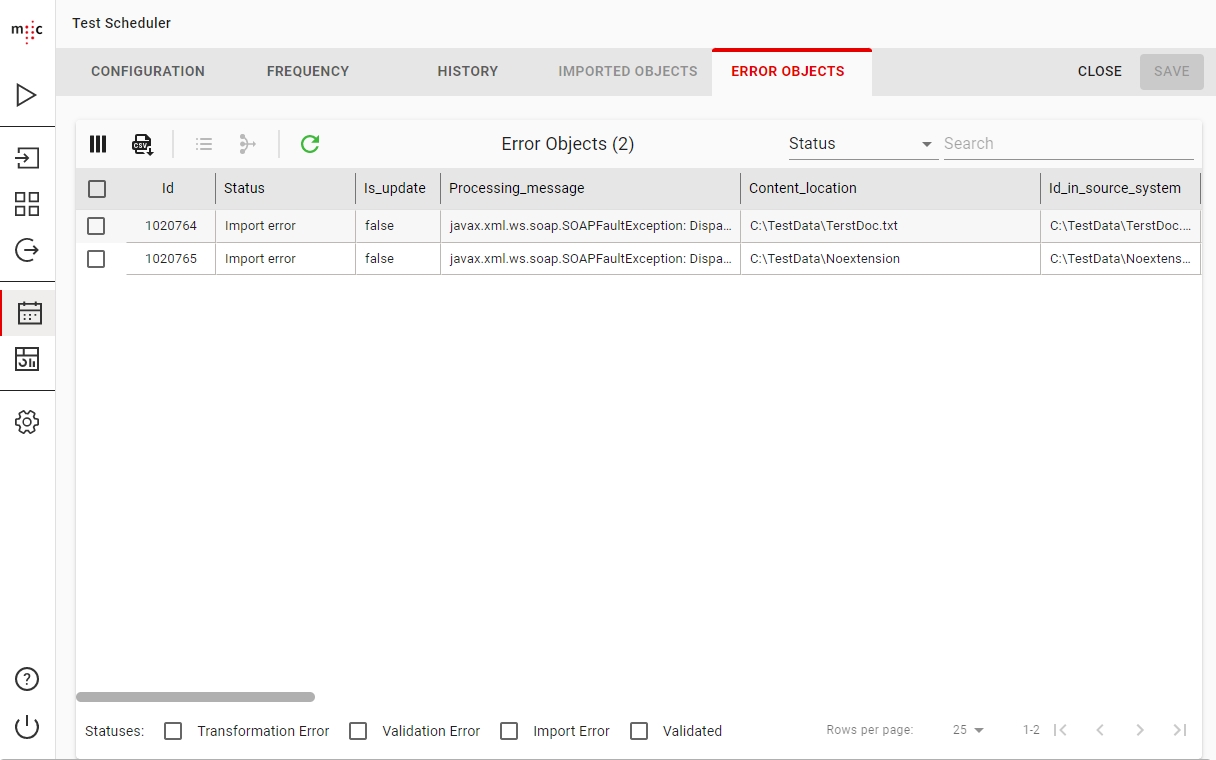

Here you can view the list of Error Objects for the selected Scheduler Run.
The Error Objects view features are common among the other Object Views. Please see Source Objects for details.

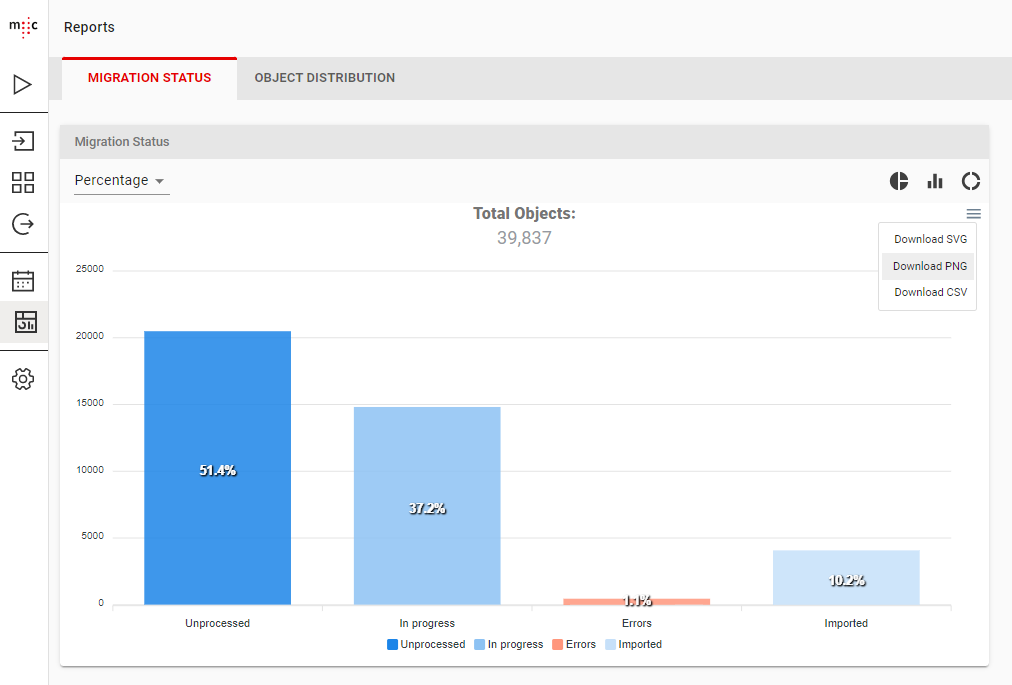

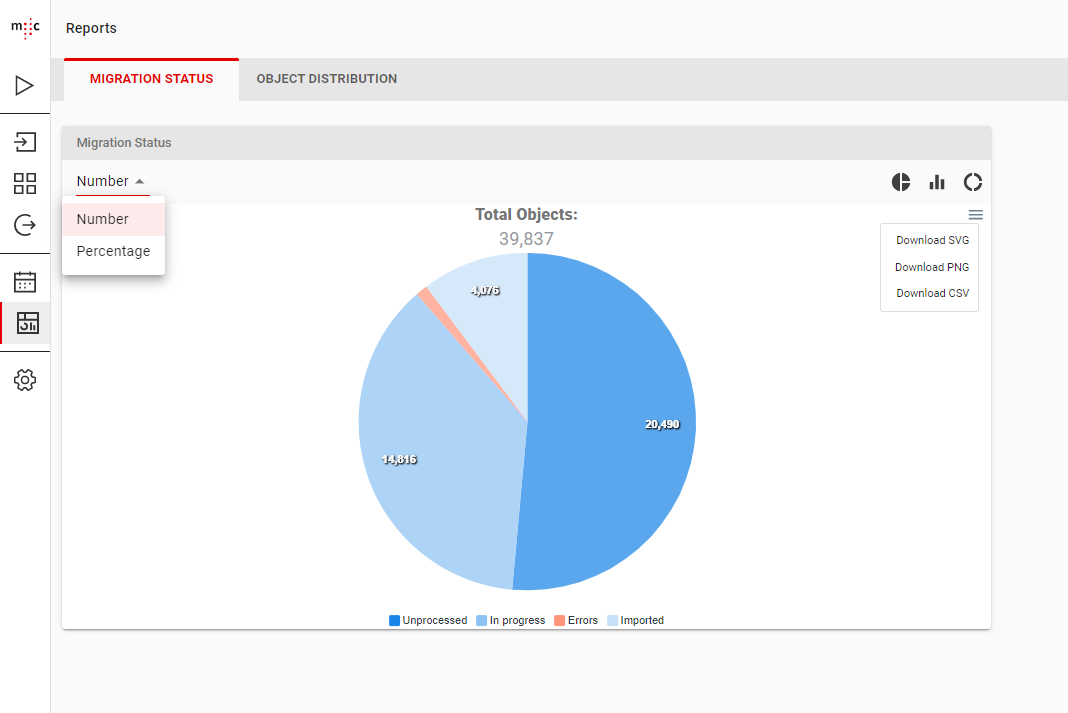

The Migration Status tab of the Dashboard presents the total number of objects in your Database, divided between the 4 states: Unprocessed, In Progress, Errors and Imported.
From the dropdown menu on the left you can chose to display Numbers or Percentages on your graph.

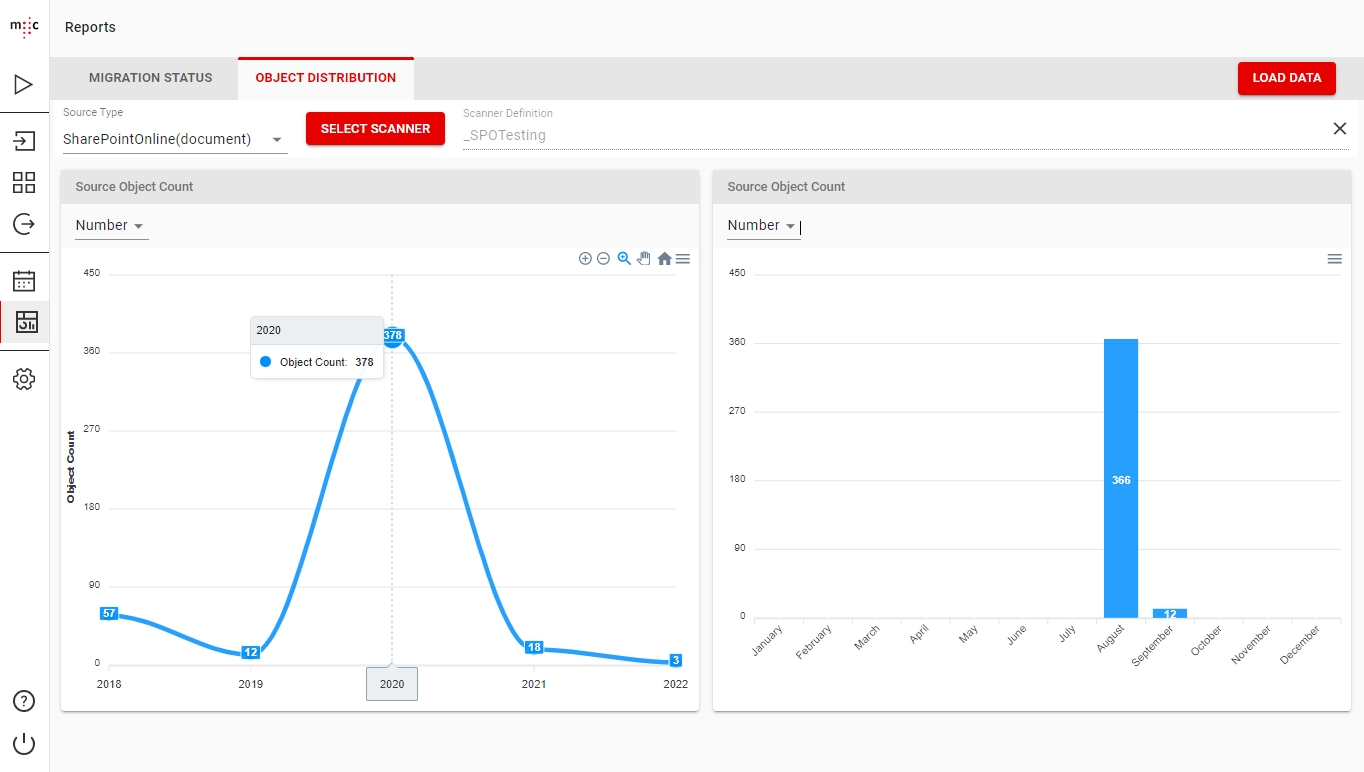

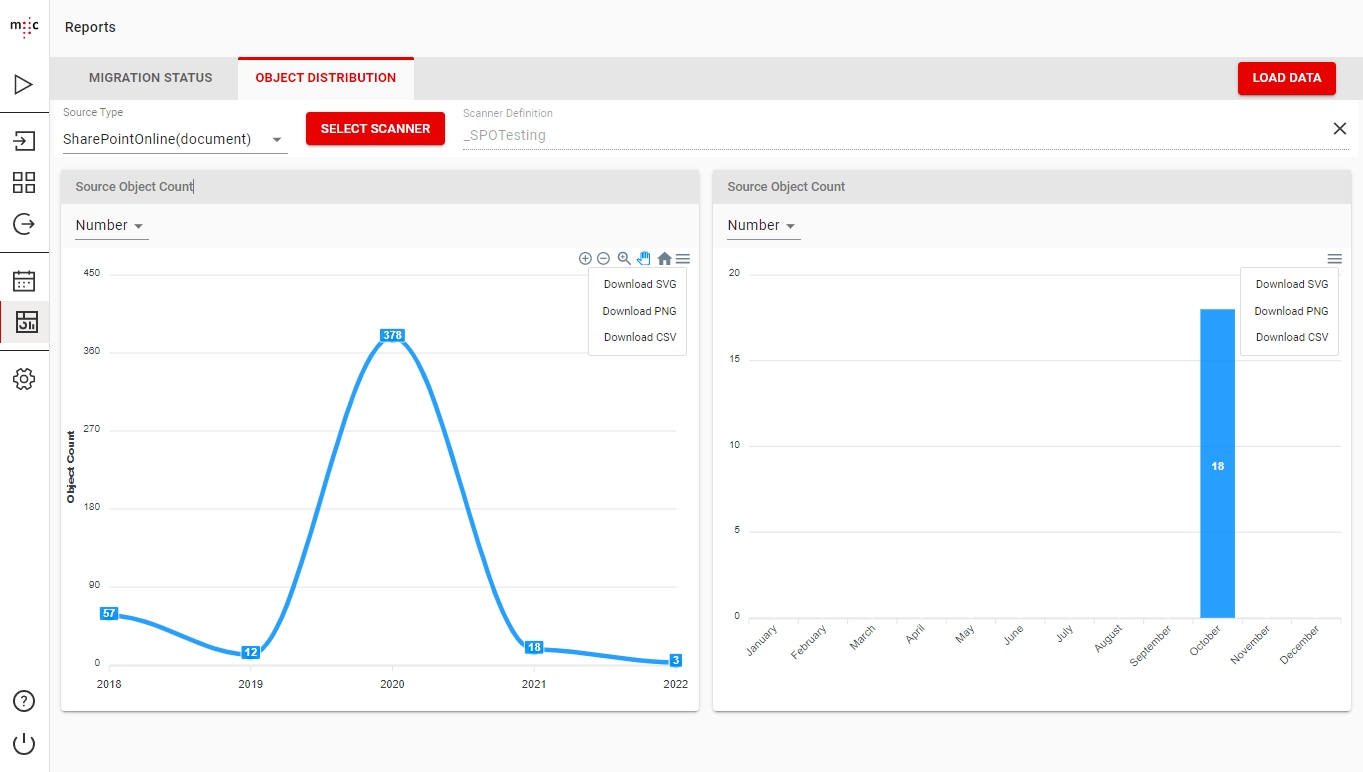

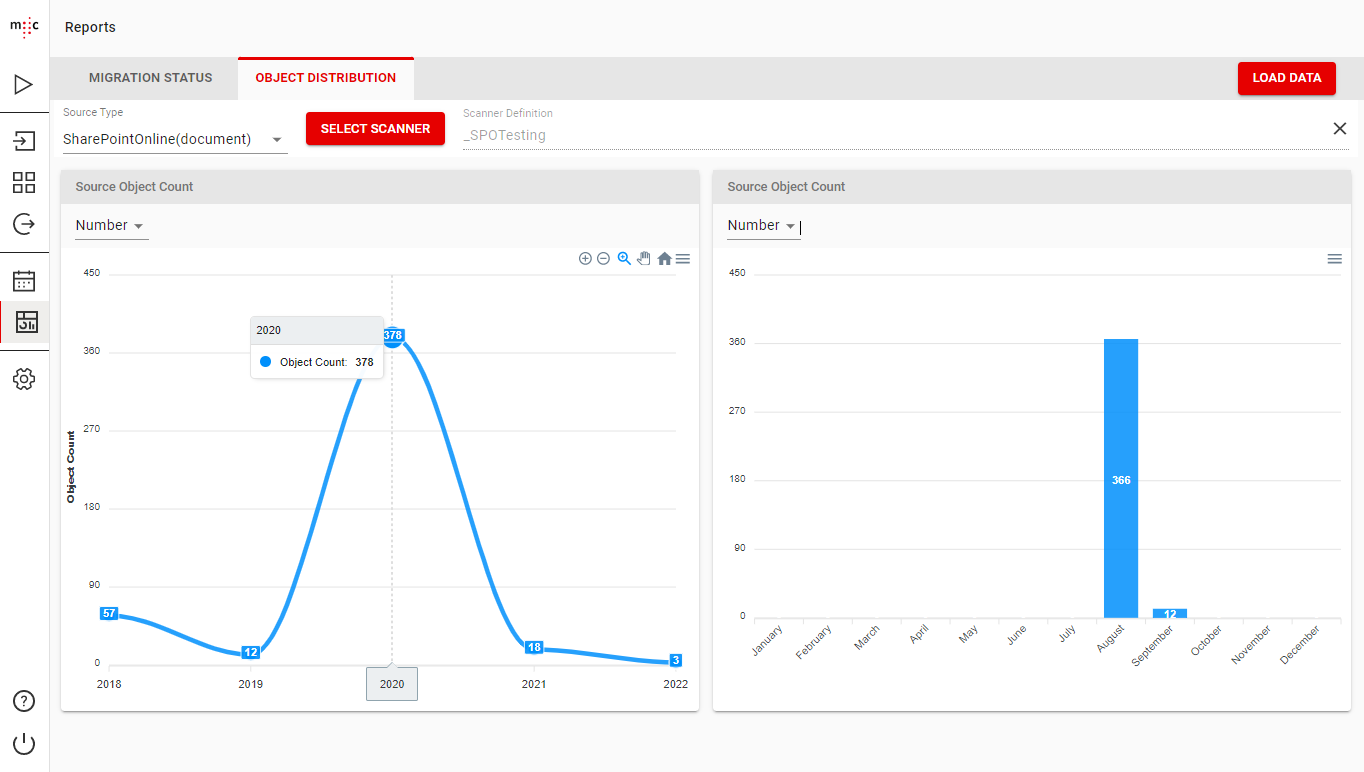

The Object Distribution tab provides more detailed reporting for specific source object types or specific Scanners.
The chart on the left shows the scanned object distribution yearly, while the chart on the right shows the scanned objects distribution monthly for a selected year.
To load all data of a source object type, first selected the required type from the Source Type dropdown and then press Load Data.
To load the data of a specific scanner, after selecting the required Source Type, press the Select Scanner button.

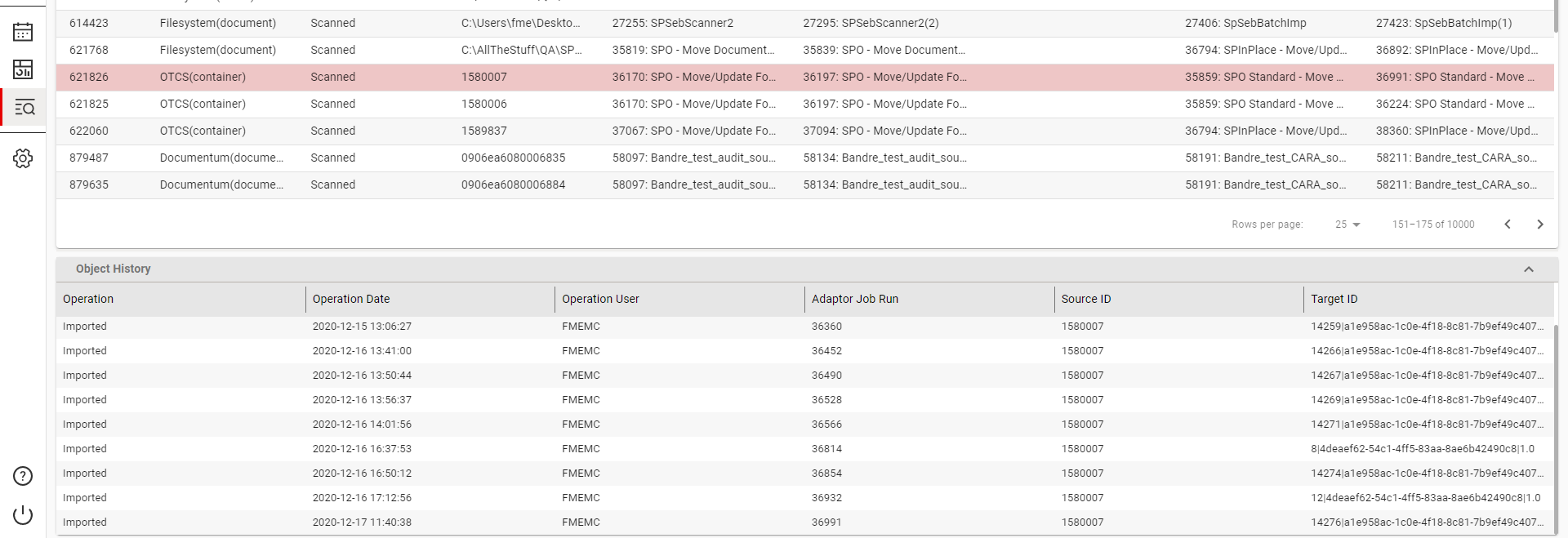

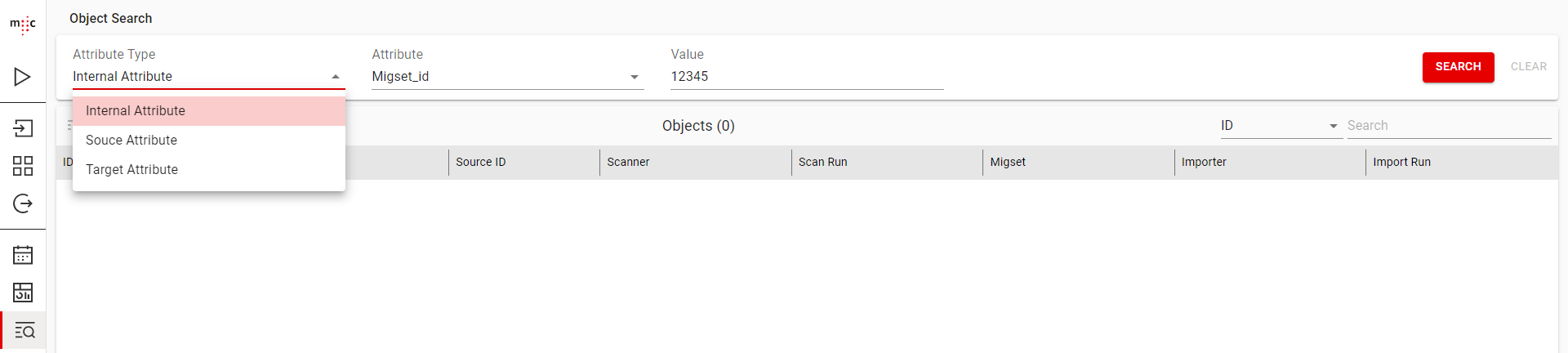

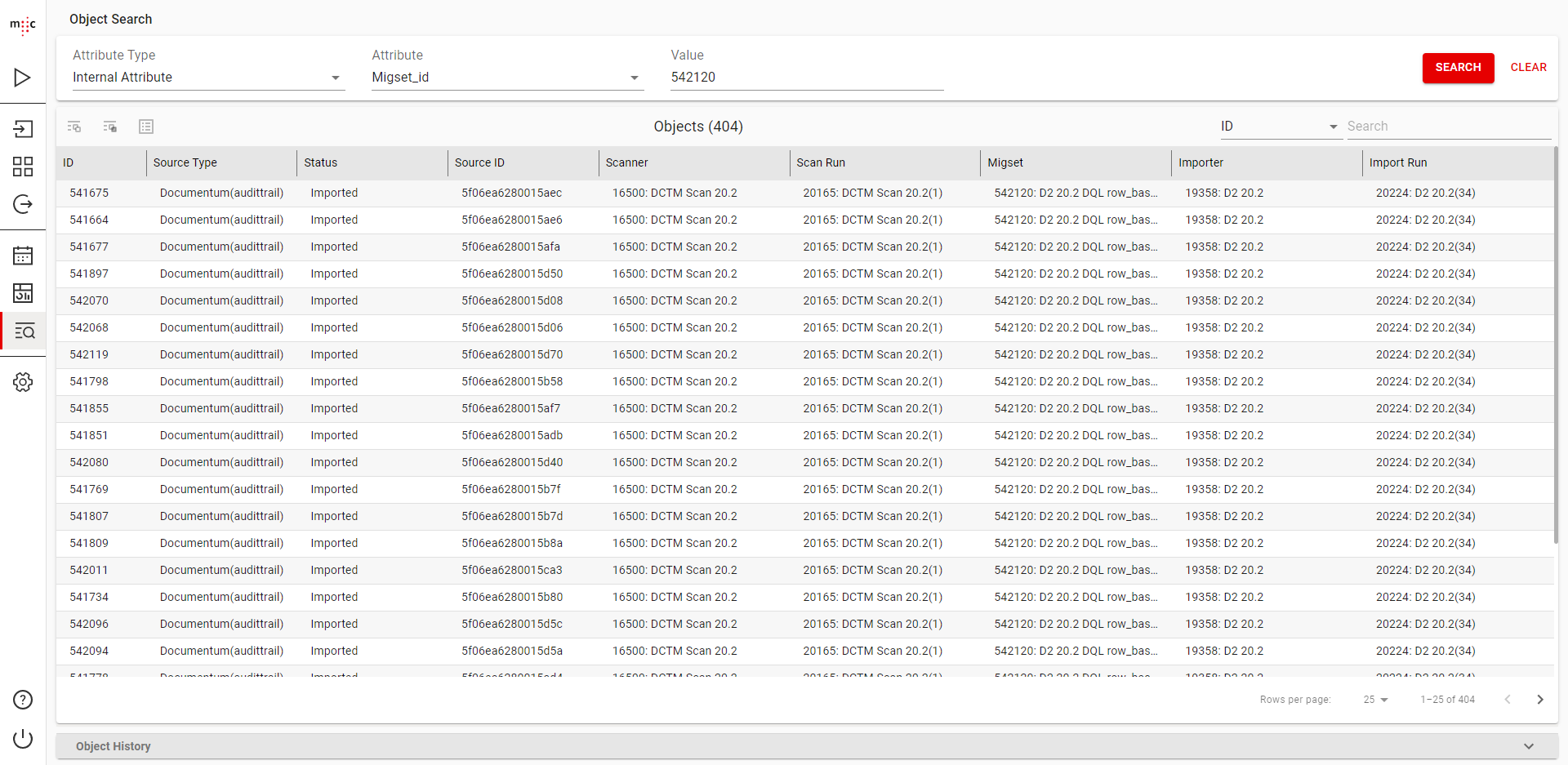

You can search for any Source / Target Object in the Object Search section using values of Internal, Source or Target attributes.
When searching by Internal Attributes, you can select the Attribute name from a dropdown of predefined attributes. Afterwards enter the Value by which you want to search.
When searching by either Source Attributes or Target Attribtues you have to manually enter the Attribute Name. Afterwards enter the Value by which you want to search.
When searching by Target Attributes, you can only use the Target Object Type Name that a rule is associated to. You cannot seach by rules that are not associated to any target object.
Start the search by clicking the Search button.
Stop the search by clicking the Cancel button that appears when a search is in progress.
All searches are run in the background. You can leave the Object Search section after starting a search and return to at a later time to check if it's finished.
When a search query finishes, results start loading in the Objects table.
You can nagivate to each of the Scanner, Scan Run, Migset, Importer and Import Run configurations that the object is contained in, by clicking on the ID value in the row of the object.
When viewing Target Attributes, only the ones that are associated to a Target Object Type will show up. To view all migset target attributes, go to the migset the object is in.
The Object History view is a list of all Scan or Import operations that an object has gone through, along with the the Job Run ID, Source ID and Target ID.
To open the view click on the collapsed header on the bottom of the screen. You can also resize it by dragging the space between the two tables.
To load the history of a specific object just select it in the results table.
To view the History Attributes of a specific operation right click it and select the View History Attributes entry in the context menu. These attributes will be either Source or Target depending on the type of the operation.
A Job Server definition is needed to run jobs like scanning or importing documents.
Enter a Name, Location (where a Job Server is installed), Port (9700 by default) and a Description (optional) for your Job Server definition. When finished, click CREATE.
Object Types in migration-center are a representation of a document or other objects in a Target System where you are importing. They are used in the Associations section of a migset and any object needs to be associated to at lest one Object Type to be able to Transform, Validate and Import it.
Object Types currently used in MigSets cannot be deleted.
Only CSV files using comma "," as separator are supported. See the CSV "RFC 4180" specification.
The attributes of an object type need to match the attributes or fields in the target system in Name and Type. If the attributes do not accurately represent the target system this can result in object values passing validation and causing errors during the Import phase.
A Mapping List is a collection of key - value pairs that can be used in Transformation Rules using the MapValue() function.
Checking Exact Match makes the mapping list match key values only if they are exactly the same.
Using Exact Match unchecked will result in the mapValue and mutliColumnMapValue functions to match source strings that contain the key in the mapping list as a substring.
i.e. source string "My key here" in a mapValue function will match a key in the mapping list with the value "key".
Partial matches do not work the other way around. A source string "sample" in a mapValue function will not match a mapping list key with the value "Test sample 1".
Checking Case Sensitive makes the mapping list match key values only if the case matches. Otherwise matches will be made regardless of case.
Only CSV files using comma "," as separator are supported. See the CSV "RFC 4180" specification.
The Multi Column Mapping List is a new feature usable only with the migration-center WebClient.
To use a regular Mapping List, in the transformation rule select the MapValue() function. Set the value to be matched with the values in the Key column, select the Mapping List you want to use and whether or not you want the function to report a transformation error when a value is not matched.
To use a Multi Column Mapping List, in the transformation rule select the MultiColumnMapValue() function. Set the first parameters as you would for a regular mapping list and also specify the name of which Value column you want the function to return when finding a match.
Here you can enter a new License key for the migration-center database installation you are currently connected to.
After upgrading the migration-center database to a newer version, changing the license key is not mandatory.
Entering a license key with different migration paths, will NOT update the list of available Connector or Migset types.
The About section provide information on your current installation as follows:
Version of migration-center components: UI version, API version and Database version.
The Java version that is running the WebClient Apache Tomcat.
The Oracle version of the migration-center Database that you are currently connected to.
Licence Information: Licensed to and Licence validity.
Double clicking an entry or clicking the Logs icon on the toolbar opens the log file created by that run. The log file contains more information about the run of the selected job:
To modify an existing connection, select the desired connection, click the Edit Connection button and modify the Connection Name, Database Type, Host, Port number and Service Name accordingly. When finished, click Save.
To delete a connection, select the desired connection, click the Delete Connection button and then, in the confirmation message, click DELETE.
To log out of migration-center WebClient, click Log Out on the sidebar.
To monitor running migration jobs, click the Jobs icon on the sidebar.
Here you can select a job and Pause , Start or Stop it using the buttons in the toolbar. You can also filter the list using the Column Selector and Search field in the top right of the page.
To create a scanner, click the Scanners icon on the sidebar, click the Add Scanner + icon on the toolbar and then configure the parameters.
To modify a scanner, select the desired Scanner and either right-click it and then select Edit Scanner on the context menu, or click the Edit icon on the toolbar.
To copy a scanner, select the desired Scanner and either right-click it and then select Copy Scanner on the context menu, or click on the Copy icon on the toolbar. When finished, click SAVE.
To delete an existing Scanner, select the desired Scanner and either right-click it and click Delete Scanner on the context menu, or click the Delete icon on the toolbar. Then, in the Confirm Delete dialog box, click DELETE.
To view a Scan Run Log select the desired scan run and either right-click it and select Download Scan Run Logs, or on the Log icon in the toolbar or by double clicking the entry.
To view the Scanned Objects of a Scan Run select the desired scan run and either right-click and select Show Scan Run Objects or click the Source Objects icon in the toolbar.
To delete a Scan Run select the desired scan run and either right-click it and select Delete Scan Run or click the Delete icon in the toolbar.
You can also do this by selecting your scanner in the Scanners view and either right-click and select Source Objects or click the Source Objects icon in the toolbar.
To Customize the displayed columns, click on the Customize Columns button in the toolbar. You will be presented with a list of all existing columns from which you can choose which will be displayed. By default, all columns are displayed.
To Export objects as CSV, click on the Export objects as CSV button in the toolbar. This will export all the object metadata present in the Scanner as a CSV file.
To view the Attributes of an object, click on the object and then on the View Attributes button in the toolbar. This will open a view that contains all the attributes of that specific object.
To view the Relations of an object, click on the object and then on the View Relations button in the toolbar. This will open a view that contains all the relations and their details for a specific object.
To refresh the objects list, click on the Refresh Objects button in the toolbar.
To create a Migset, click on the Migsets icon in the sidebar and on the buttons bar click the Add MigSet + button.
To modify a Migset, select the desired Migset and either right-click it and then select Edit Migset on the context menu, or click the Edit icon on the toolbar. When finished, click SAVE.
To copy a Migset, select the desired Migset and either right-click it and then select Copy Migset on the context menu, or click on the Copy icon on the toolbar. When finished, click SAVE.
To delete a Migset, select the desired Migset and either right-click it and click Delete Migset on the context menu, or click the Delete icon the toolbar. Then, in the Confirm Delete dialog box, click DELETE.
To Apply Transformation on a migset you can use the Transform button . This will start a background process of processing all Transformation Rules on each Source Object in order to generate the new metadata on the Target Objects.
To Reset Transformation on a migset you can use the Reset button . In the confirmation dialog you have a checkbox if you want to Reset Imported Objects (by default only objects in status Transformed, Validated and Error are reset).
Splitting a migset is a new feature added in the new migration-center WebClient. It allows you to create copies of the selected migset and split its objects equally among them. After clicking on the Split Migset button you can select the number of migsets to split it in. An approximation of the number of objects per migset after the split is displayed. Click on the SPLIT button and confirm to start the process.
To select objects in a migset, double-click an entry in the list of Available scan runs or select one and use the down arrow button to add it to the list of Selected scan runs.
To add a Transformation Rule click on the Plus icon then set a Name and optionally a Description.
To copy a Transformation Rule select the rules and click on the Copy icon .
To delete a Transformation Rule select the rules and click on the Delete icon .
To copy rules between migsets select the rules and click on the Copy to Clipboard icon . Then open the Rules section of the migset where you want to paste the rules and click on the Paste from Clipboard icon . You can paste as many times as needed.
To set a Rule as a Snippet check Snippet checkbox in the Rule Properies.
To get a description of the function or its parameters you can hover your mouse over the info icon
For migrations where a simple transformation rule is needed for each or most source attributes you can use the Generate Rules feature by clicking on the button. This will create a Transformation Rule for each Source Attribute with the same name and with a GetValue() function for each specific attribute in it. This is very useful in migrations where the Source and Target systems are of the same type.
You can Export the entire transformation model using the Export to XML icon .
You can Import previously exported transformation model using the Import from XML icon .
You can Copy the transformation model from another migset using the Copy Transformation Model icon .
To add an Object Type, select one from the dropdown list and click the Add button .
To add an Association, select the object type, then the transformation rule and target attribute you want to associate, and click on the green Add button .
Alternatively you can Auto Associate transformation rules and target attributes that have the same name, by using the button. This is the recommended way.
To Customize the displayed columns, click on the Customize Columns button in the toolbar. You will be presented with a list of all existing columns from which you can choose which will be displayed. By default, all columns are displayed.
To Export objects as CSV, click on the Export objects as CSV button in the toolbar. This will export all the object metadata as a CSV file.
To view the Attributes of an object, click on the object and then on the View Attributes button in the toolbar. This will open a view that contains all the attributes of that specific object.
To view the Relations of an object, click on the object and then on the View Relations button in the toolbar. This will open a view that contains all the relations and their details for a specific object.
To refresh the objects list, click on the Refresh Objects button in the toolbar.
To filter objects by a specific value, select the cell containing the value by which to filter and then click on the Filter by value button in the toolbar. This will set the current column as the selected one in the filter and set the cell text as the filter value.
To Remove objects from the migset, you can select one or multiple objects using the checkboxes to the left of the table. Once you have your selection, press the Remove from Migset button in the toolbar or in the context menu.
To manually edit the attributes of an object, press the Edit Attributes button in the toolbar or in the context menu. This will open a view that will allow you to edit individual object attributes.
To Reset Transformation for one or more objects, select the required object/s and press the Reset button in the toolbar or in the context menu. The object will be reset to its Unprocessed state.
You can Reset all error objects by clicking the Reset All icon .
To create an importer, click the Importers icon on the sidebar and then click the Add icon on the buttons bar and then configure the parameters.
To modify an importer, select the desired Importer and either right-click it and then select Edit Importer on the context menu, or click the Edit icon on the toolbar.
To copy an importer, select the desired Importer and either right-click it and then select Copy Importer on the context menu, or click on the Copy icon on the toolbar. When finished, click SAVE.
To delete an existing importer, select the desired Importer and either right-click it and click Delete Importer on the context menu, or click the Delete icon on the toolbar. Then, in the Confirm Delete dialog box, click DELETE.
To view an Import Run Log select the desired import run and either right-click it and select Download Import Run Logs, or on the Log icon in the toolbar or by double clicking the entry.
To delete an Import Run select the desired import run and either right-click it and select Delete Import Run or click the Delete icon in the toolbar.
To create a Scheduler click on the Schedulers icon in the sidebar and on the Add icon . See the following instructions on how to configure the rest of the Scheduler configuration.
To modify a Scheduler, select it and either right-click it and then select Edit Scheduler on the context menu, or click the Edit button on the toolbar. When finished, click SAVE.
To delete an Scheduler, select it and either right-click it and click Delete Scheduler on the context menu, or click the Delete button on the toolbar. Then, in the confirmation dialog box, click DELETE.
To delete a Scheduler Run select it and click on the Delete icon . Click on DELETE if you want to also delete the scan run, migset and import run along with all the imported objects. Or click on JUST THE RUN to delete only the Scheduler Run from history.
The Dashboard is a new feature added to the WebClient which provides reports on the objects present in your migration-center Database.
The toolbar to the right allows you to change the type of the chart, offering a Pie Chart , Bar Chart and Donut Chart .
The chart of your choosing can then be exported as a SVG, PNG or CSV file using the drop down menu to the right.
To select the required year period, from the toolbar of the first chart, press Zoom In or Zoom Out or press Selection Zoom to drag-select the needed years.
To return the chart to its default state press the Reset Zoom button.
To export the charts, press the Export to SVG, PNG or CSV for the respective chart.
You can view the Source Attributes and Target Attribtues (if they exist) of each object by selecting an object and clicking on the following icons in the toolbar or by right clicking an object and selecting the View Source Attributes or View Target Attributes entries in the context menu.
To create a Job Server definition, click the Configure button on the sidebar, in the JOB SERVERS tab click the Add icon on the buttons bar and then configure the Job Server parameters in the Create dialog box.
To modify an existing Job Server, select the desired Job Server and either right-click it and then select Edit Job Server on the context menu, or click the Edit button on the buttons bar. Then, in the Edit dialog box, configure the parameters accordingly. When finished, click SAVE.
To delete an existing Job Server, select the desired Job Server and either right-click it and click Delete Job Server on the context menu, or click the Delete button on the buttons bar. Then, in the Confirm Delete dialog box, click DELETE.
To create an Object Type click the Configure button on the sidebar, in the OBJECT TYPES tab and click on the Add icon . Enter a Name and an optional Description, then click on the SAVE button.
To delete an Object Type select the Object Type and click on the Delete icon . Confirm the action in the confirmation dialog.
To copy an Object Type select the Object Type and click on the Copy icon in the toolbar. Then click on the SAVE button.
To export an Object Type to CSV select the Object Type and click on the Export icon .
To import an Object Type from CSV click on the Import icon and select the CSV file. Set the desired Name of the newly imported Object Type and click on the OK button.
To add a new Attribute select the Object Type, then click on the Add Attribute button. Set the attribute Name, Type (String, Number, Date or Boolean), Minimum and Maximum length allowed for the values of this attribute, if it allows Repeating values or not and if it is Required (mandatory to have a value). You can also set a Regular Expression to determine specific formats that the values are allowed to have.
To delete an Attribute select the Object Type and click on the Red X icon of the attribute you want to delete. When finished click on SAVE.
To create a Mapping List click the Configure button on the sidebar, in the MAPPING LIST tab and click on the Add icon . Enter a Name and click on the SAVE button.
To copy a Mapping List select the desired mapping list and click on the Copy icon in the toolbar.
To delete a Mapping List select the desired mapping list and click on the Delete icon in the toolbar.
To add a new entry manually click on the Add Value button , enter the values for the Key and the Value columns. When finished click on SAVE.
To paste entries first copy values either from an Excel table or from a text file that has the values tab separated, then click on the Paste Values icon . When finished click on SAVE.
To export entries to a CSV select the mapping list and click on the Export to CSV icon .
To import entries from CSV create or select a mapping list, click on the Import to CSV icon , Drag and Drop the CSV file, check the Overwrite existing entries option if you want existing entries with the same key as an imported one to be replaced, then click on Upload. After the import is finished you will receive a message with the number of successfully imported entries and a list of any error entries, if there are any. If the number of errors exceeds 1000, the import is canceled.
To delete an entry select the mapping list and click on the Red X icon of the entry you want to delete. When finished click on SAVE.
To delete all entries select the mapping list and click on the Clear Values icon on the mapping list values toolbar. When finished click on SAVE.
To make a mapping list Multi Column create or select a mapping list, click on the Customize Columns iconand add up to 10 Value Columns. Afterwards enter or import your entries as you would normally. When finished click on SAVE.
